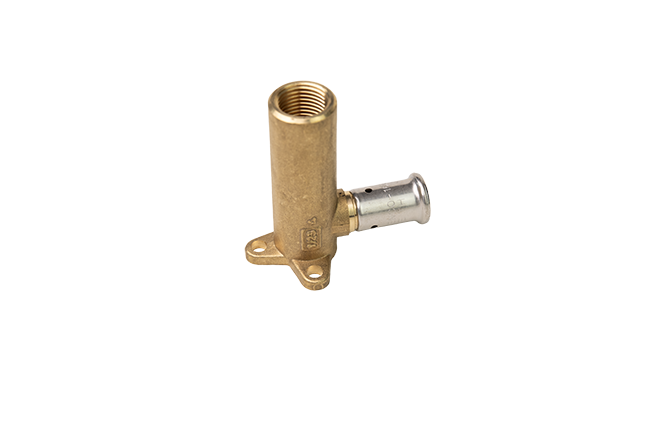

Backplate elbow female, extended model
Henco brass press fittings: the best solution for every situation.
4P Tall brass toilet/bathroom wall plates with female thread (height: 78 mm):
- Suitable for Henco multilayer pipes measuring 16 and 20 mm in diameter
- Body material: brass (CW617)
- Press fitting material: stainless steel
- O-ring material: EPDM
- Female thread material: CW617
- Female thread sizes: 1/2"
- Suitable press profiles: TH/BE for pipes measuring 16 and 20 mm in diameter
- Height: 78 mm
- Suitable for drinking water
- Fitted with leak detection (Leak Before Press)
- Extremely pressure and temperature resistant
- Fitted with a thrust washer to prevent electrolysis
- Press fittings come with three viewing windows
Applications
Potable water
Heating
Compressed air
Cooling
Sanitary
Solutions
Building Installations
Industry
Utility
Shipbuilding
Product range
- Article number Product description LxBxH GTIN
-
4P-1604
Henco Backplate elbow female extended model 16x1/2"
76x52x78
05414764031050
Specifications
Specifications 4P-1604
- Max. operating pressure 16 bar
- Length of connection 1 67 mm
- Length of connection 2 71.5 mm
- Working length connection 2 54 mm
- Shape Right-angled
- NetWeight 0.245
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
4P-2004
Henco Backplate elbow female extended model 20x1/2"
78x52x78
05414764031135
Specifications
Specifications 4P-2004
- Max. operating pressure 16 bar
- Length of connection 1 67 mm
- Length of connection 2 71.5 mm
- Working length connection 2 54 mm
- Shape Right-angled
- NetWeight 0.25
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
