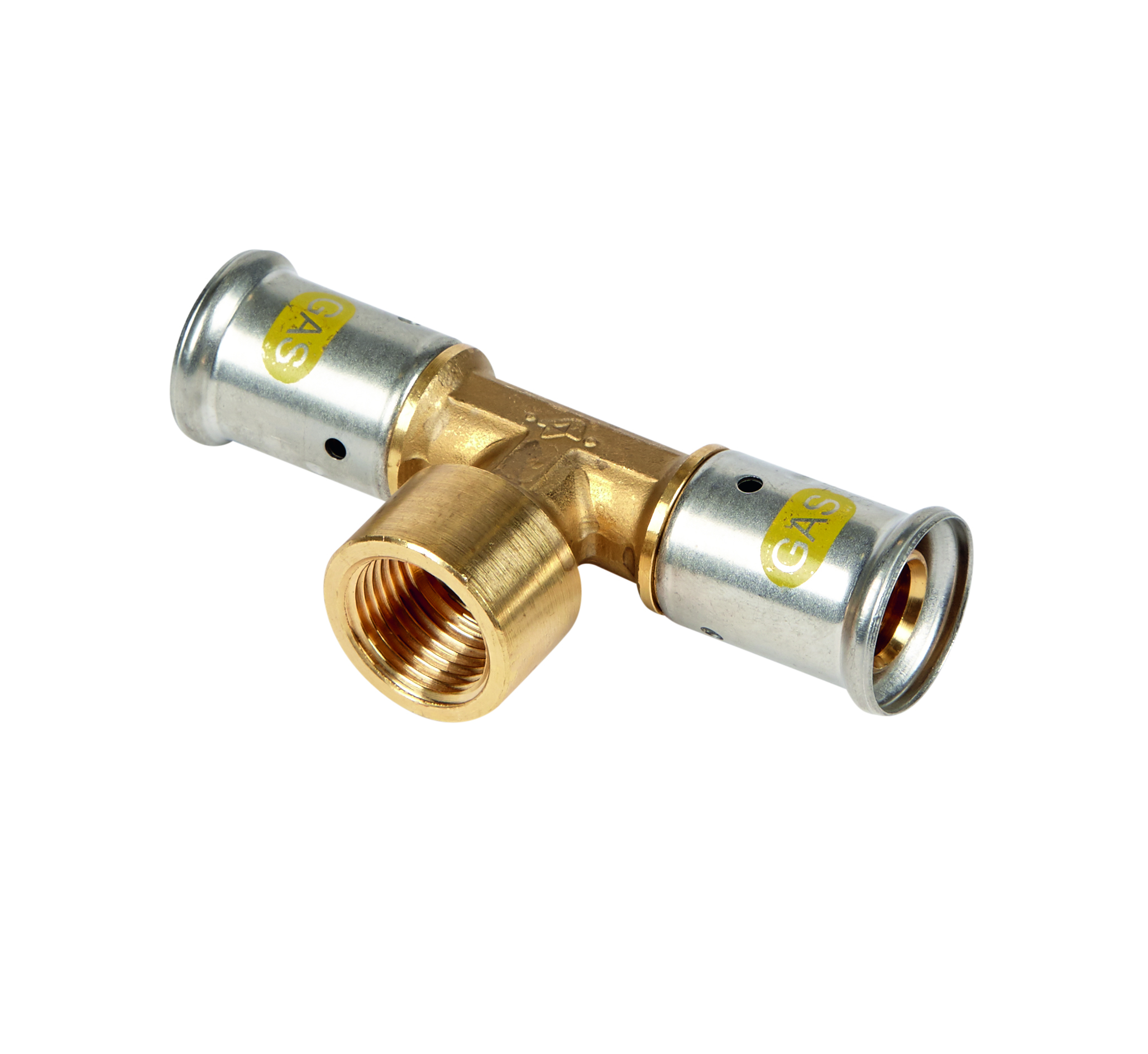

T-female centre
Henco brass press fittings for gas: when safety is of vital importance.
13PG Brass tee with female thread for gas:
- Suitable for Henco multilayer pipes measuring 20 and 26 mm in diameter
- Body material: brass (CW617)
- Press fitting material: stainless steel
- Marking colour on press fitting: yellow
- O-ring material: HNBR
- Female thread material: CW617
- Female thread sizes: 1/2" and 3/4"
- Suitable press profiles: TH/BE for pipes measuring 20 and 26 mm in diameter
- Suitable for gas
- Fitted with leak detection (Leak Before Press)
- Extremely pressure and temperature resistant
- Fitted with a thrust washer to prevent electrolysis
- Comes with three viewing windows
Applications
Natural gas
Solutions
Building Installations
Industry
Oil & Gas
Utility
Shipbuilding
Product range
- Article number Product description LxBxH GTIN
-
13PG-200420
Henco T-with female branch Gas 20x1/2"x20
99x27x46
05414764206571
Specifications
Specifications 13PG-200420
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Length of connection 1 31 mm
- Material connection 2 Brass
- Length of connection 2 16.5 mm
- Material sealing Hydrogenated acrylonitrile butadiene rubber (HNBR)
- With drain valve No
- NetWeight 0.171
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
13PG-260426
Henco T-with female branch Gas 26x1/2"x26
115x32x54
05414764206885
Specifications
Specifications 13PG-260426
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 26 mm
- Contour code connection 1 TH
- Length of connection 1 32 mm
- Material connection 2 Brass
- Length of connection 2 16.5 mm
- Material sealing Hydrogenated acrylonitrile butadiene rubber (HNBR)
- With drain valve No
- NetWeight 0.226
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
