T-branch and line reduced
Henco brass press fittings for gas: when safety is of vital importance.

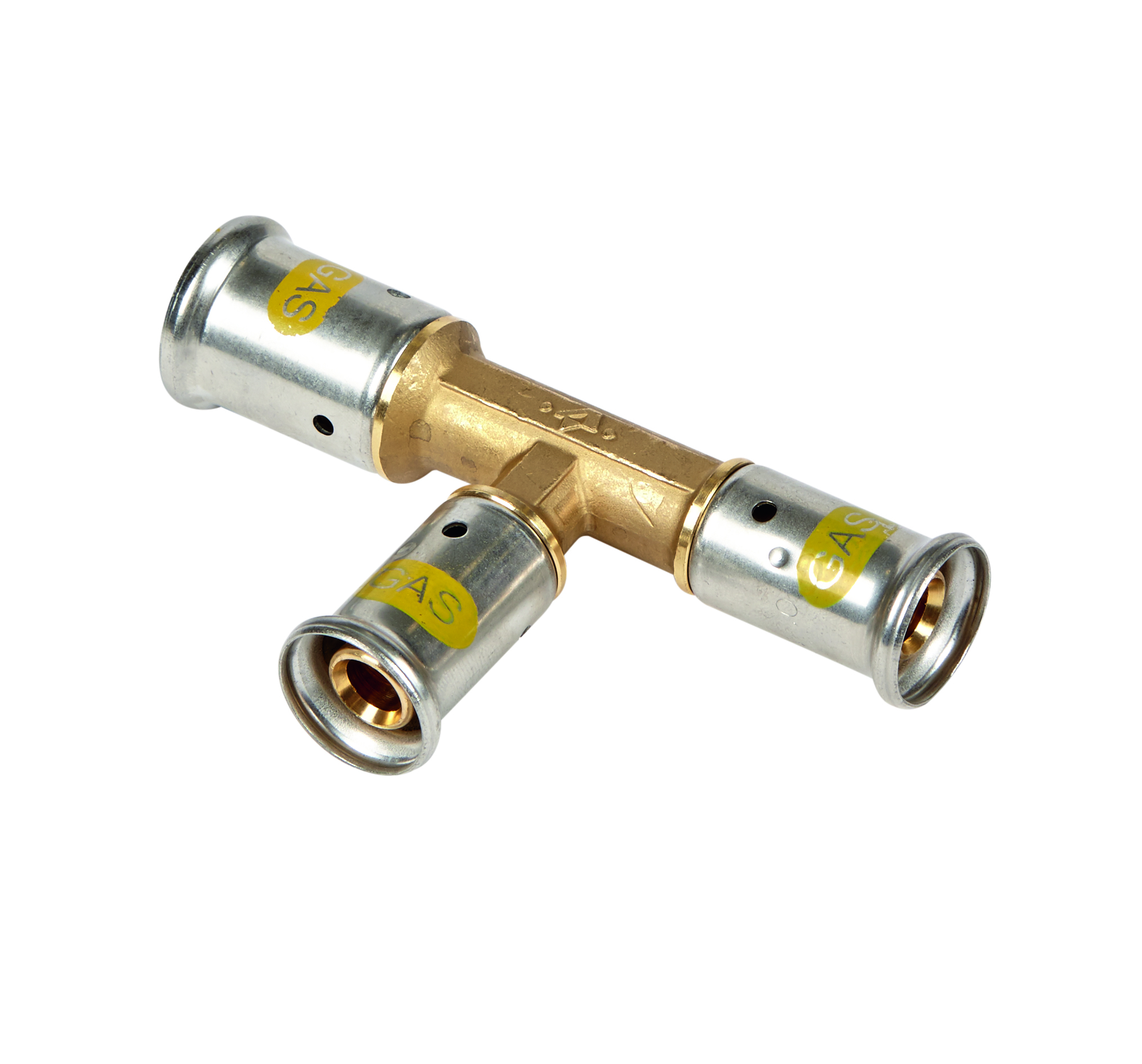

11PG Brass double reducing tee for gas:
- Suitable for Henco multilayer pipes measuring 16 and 20 mm in diameter
- Body material: brass (CW617)
- Press fitting material: stainless steel
- Marking colour on press fitting: yellow
- O-ring material: HNBR
- Suitable press profiles: TH/BE for pipes measuring 16 and 20 mm in diameter
- Suitable for gas
- Fitted with leak detection (Leak Before Press)
- Extremely pressure and temperature resistant
- Fitted with a thrust washer to prevent electrolysis
- Comes with three viewing windows
Applications
Natural gas
Solutions
Building Installations
Industry
Oil & Gas
Utility
Shipbuilding
Product range
- Article number Product description LxBxH GTIN
-
11PG-201616
Henco T-branch and line Reduced Gas 20x16x16
98x26x60
05414764196483
Specifications
Specifications 11PG-201616
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Length of connection 1 31 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 16 mm
- Contour code connection 2 TH
- Length of connection 2 31 mm
- Material sealing Hydrogenated acrylonitrile butadiene rubber (HNBR)
- With drain valve No
- NetWeight 0.16
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
11PG-262020
Henco T-branch and line Reduced Gas 26x20x20
112x32x70
05414764202276
Specifications
Specifications 11PG-262020
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 26 mm
- Contour code connection 1 TH
- Length of connection 1 31 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 20 mm
- Contour code connection 2 TH
- Length of connection 2 31 mm
- Material sealing Hydrogenated acrylonitrile butadiene rubber (HNBR)
- With drain valve No
- NetWeight 0.209
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
