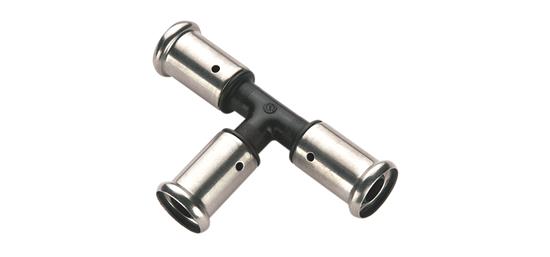

T-piece

T-piece

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Potable water
Heating
compressed air
cooling
demi Water

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN
9PK-141414 Henco T-piece 14x14x14 92x56x20 05414764041905

Specifications 9PK-141414

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 14 mm
Contour code connection 1 TH
Length of connection 1 46 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 14 mm
Contour code connection 2 TH
Length of connection 2 46 mm
Working length connection 2 19 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.0399
MaximumOperatingPressureLiquid 16
9PK-161616 Henco T-piece 16x16x16 94x58x22 05414764041943

Specifications 9PK-161616

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 47 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 47 mm
Working length connection 2 20 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.0476
MaximumOperatingPressureLiquid 16
9PK-181818 Henco T-piece 18x18x18 96x60x24 05414764041981

Specifications 9PK-181818

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 18 mm
Contour code connection 1 TH
Length of connection 1 48 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 18 mm
Contour code connection 2 TH
Length of connection 2 48 mm
Working length connection 2 21 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.0553
MaximumOperatingPressureLiquid 16
9PK-202020 Henco T-piece 20x20x20 98x62x26 05414764042025

Specifications 9PK-202020

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 49 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 49 mm
Working length connection 2 22 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.0625
MaximumOperatingPressureLiquid 16
9PK-262626 Henco T-piece 26x26x26 107x69.5x32.5 05414764042063

Specifications 9PK-262626

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 53.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 53.5 mm
Working length connection 2 26.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.1094
MaximumOperatingPressureLiquid 16
9PK-323232 Henco T-piece 32x32x32 139x89x38.5 05414764042100

Specifications 9PK-323232

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 69.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 32 mm
Contour code connection 2 BE
Length of connection 2 69.5 mm
Working length connection 2 33.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.172
MaximumOperatingPressureLiquid 10
9PK-404040 Henco T-piece 40x40x40 150x98x46.5 05414764042148

Specifications 9PK-404040

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 75 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 40 mm
Contour code connection 2 BE
Length of connection 2 75 mm
Working length connection 2 39 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.2567
MaximumOperatingPressureLiquid 10
9PK-505050 Henco T-piece 50x50x50 191x124x56.5 05414764042186

Specifications 9PK-505050

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 95.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 50 mm
Contour code connection 2 BE
Length of connection 2 95.5 mm
Working length connection 2 44.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.4363
MaximumOperatingPressureLiquid 10
9PK-636363 Henco T-piece 63x63x63 233.5x151.5x70 05414764042223

Specifications 9PK-636363

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 63 mm
Contour code connection 1 BE
Length of connection 1 117 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 63 mm
Contour code connection 2 BE
Length of connection 2 117 mm
Working length connection 2 53 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.7568
MaximumOperatingPressureLiquid 10
