Pro-Flow Manifold
The multifunctional modular system
A universal manifold for up to 12 circuits.
The Henco Pro-Flow Manifold is quick and easy to install, without the need for any tools. The system consists of modular synthetic material components with integrated ball valves that align themselves.

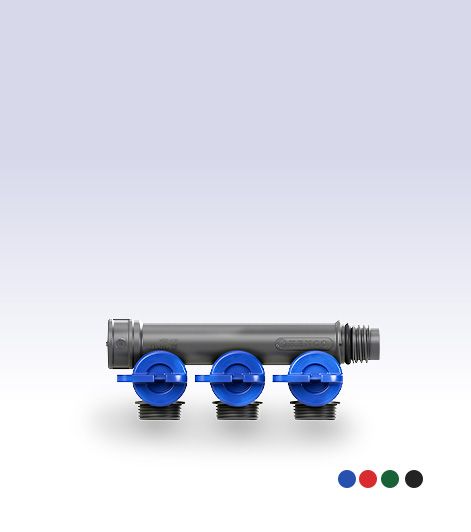

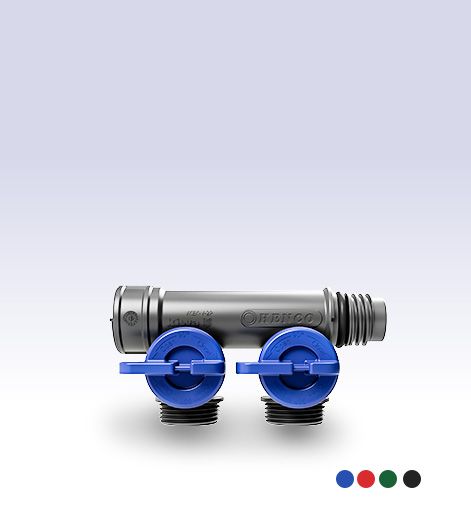

Thanks to the modules with 2 or 3 outlets, you can easily design an installation with up to 12 individually lockable circuits.
The high-quality synthetic material manifolds with integrated ball valves from the Henco Pro-Flow range are certified for drinking water.
*Delivery times are 8 to 12 weeks
Modular and self-aligning
The Henco Pro-Flow system offers three different modular components with groups that can be positioned either upwards or downwards.
The system allows you to create a group for each individual outlet point, avoiding connections within the floor.
It is suitable for both push-fit and press-fit applications, and closing a circuit for maintenance is simple. The supply is available in 20 mm and 26 mm. Various circuit connections in 3/4” Euroconus are possible.
Available in: Red, Blue, Green, Black
Advantages
The Henco Pro-Flow Manifold is highly versatile and suitable for various applications in both residential and commercial installations. Some of the key benefits include:
- Specific supply circuit for each tapping point, individually lockable
- Improves the balance in a system with a large number of connections within a very short length.
- Multifunctional, modular, and self-aligning
- Maximum number of connections within a very short length
- Economic solution, combined with quick and easy installation
- Tool-free and easy assembly of the manifold
Applications
The Henco Pro-Flow Manifold is highly versatile and suitable for various applications in both residential and commercial installations. Some of the main applications include:
- Hot and cold drinking water
Suitable for safely transporting potable water, both cold and hot. Ideal for use in sanitary installations.
- Chilled water with glycol
Can be used in systems circulating chilled water with glycol, helping to prevent freezing in cooling systems. Suitable for industrial refrigeration applications.
- Heating
Perfect for controlling heating systems, where water is used to distribute heat throughout the building. This ensures efficient and even heating.
Technical Information
Various Circuit Connections
The Pro-Flow Manifold can be equipped with various high-quality fittings to meet different needs. We offer a large number of connections within a very short length: for simple and reliable connections, synthetic press fittings for durable and robust joints, brass press fittings for extra strength and reliability, and synthetic push-fit fittings for quick and efficient connections.
Pipe
Suitable for use with Henco multilayer pipes, utilizing the appropriate fittings for the connections and outlets.
Operating Parameters
The Pro-Flow Manifold is designed for a maximum operating pressure of 10 bar and can withstand a maximum operating temperature of 95°C.
Self-Aligning
When the different modular elements are screwed together, the thread design and the integrated click notch ensure a perfectly aligned installation.
