PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Potable water
Heating
compressed air
cooling
demi Water

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN

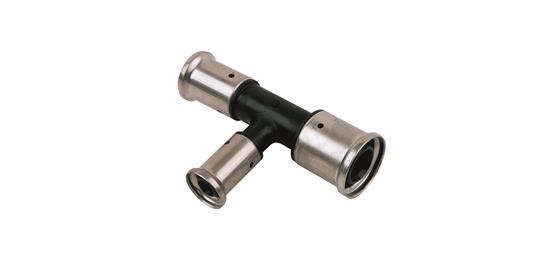

11PK-161414 Henco T-centre and line Reduced 16x14x14 94x58x22 05414764011496

Specifications 11PK-161414

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 47.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 14 mm
Contour code connection 2 TH
Length of connection 2 47 mm
Working length connection 2 20 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0435
MaximumOperatingPressureLiquid 16
11PK-181616 Henco T-centre and line Reduced 18x16x16 97.5x61.5x24 05414764011533

Specifications 11PK-181616

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 18 mm
Contour code connection 1 TH
Length of connection 1 48 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 49 mm
Working length connection 2 22 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0504
MaximumOperatingPressureLiquid 16
11PK-201616 Henco T-centre and line Reduced 20x16x16 96.5x62x26 05414764011571

Specifications 11PK-201616

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 47.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 49 mm
Working length connection 2 22 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0537
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
11PK-201818 Henco T-centre and line Reduced 20x18x18 99x63x26 05414764011618

Specifications 11PK-201818

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 49 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 18 mm
Contour code connection 2 TH
Length of connection 2 50 mm
Working length connection 2 23 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0591
MaximumOperatingPressureLiquid 16
11PK-202016 Henco T-centre and line Reduced 20x20x16 100x62x26 05414764011656

Specifications 11PK-202016

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 49 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 49 mm
Working length connection 2 22 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.059
MaximumOperatingPressureLiquid 16
11PK-261616 Henco T-centre and line Reduced 26x16x16 103x68.5x32.5 05414764203341

Specifications 11PK-261616

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 52 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 52 mm
Working length connection 2 25 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0701
MaximumOperatingPressureLiquid 16
11PK-261620 Henco T-centre and line Reduced 26x16x20 103x69x32.5 05414764011694

Specifications 11PK-261620

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 51.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0755
MaximumOperatingPressureLiquid 16
11PK-262016 Henco T-centre and line Reduced 26x20x16 103x69x32.5 05414764011731

Specifications 11PK-262016

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 51.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0743
MaximumOperatingPressureLiquid 16
11PK-262020 Henco T-centre and line Reduced 26x20x20 102.5x69x32.5 05414764011779

Specifications 11PK-262020

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 51.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0791
MaximumOperatingPressureLiquid 16
11PK-262616 Henco T-centre and line Reduced 26x26x16 109x69.5x32.5 05414764011816

Specifications 11PK-262616

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0897
MaximumOperatingPressureLiquid 16
11PK-262620 Henco T-centre and line Reduced 26x26x20 107.5x69x32.5 05414764011854

Specifications 11PK-262620

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 53.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0956
MaximumOperatingPressureLiquid 16
11PK-322026 Henco T-centre and line Reduced 32x20x26 126x75.5x38.5 05414764011892

Specifications 11PK-322026

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 66.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 56.5 mm
Working length connection 2 29.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1212
MaximumOperatingPressureLiquid 10
11PK-322626 Henco T-centre and line Reduced 32x26x26 126x75.5x38.5 05414764011939

Specifications 11PK-322626

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 66.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 56.5 mm
Working length connection 2 29.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1353
MaximumOperatingPressureLiquid 10
11PK-402032 Henco T-centre and line Reduced 40x20x32 122x83x46.5 05414764011977

Specifications 11PK-402032

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 61 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 60 mm
Working length connection 2 33 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1567
MaximumOperatingPressureLiquid 10
11PK-402632 Henco T-centre and line Reduced 40x26x32 139x84.5x46.5 05414764012011

Specifications 11PK-402632

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 67.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 61.5 mm
Working length connection 2 34.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1785
MaximumOperatingPressureLiquid 10
11PK-403232 Henco T-centre and line Reduced 40x32x32 141x94x46.5 05414764012059

Specifications 11PK-403232

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 71.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 32 mm
Contour code connection 2 BE
Length of connection 2 71 mm
Working length connection 2 35 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.2032
MaximumOperatingPressureLiquid 10
11PK-404026 Henco T-centre and line Reduced 40x40x26 144x96.5x46.5 05414764012097

Specifications 11PK-404026

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 75.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 40 mm
Contour code connection 2 BE
Length of connection 2 73.5 mm
Working length connection 2 37.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.2071
MaximumOperatingPressureLiquid 10
11PK-404032 Henco T-centre and line Reduced 40x40x32 148.5x97x46.5 05414764012134

Specifications 11PK-404032

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 74.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 40 mm
Contour code connection 2 BE
Length of connection 2 73.5 mm
Working length connection 2 37.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.2261
MaximumOperatingPressureLiquid 10
11PK-502040 Henco T-centre and line Reduced 50x20x40 140x94x56.5 05414764012172

Specifications 11PK-502040

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 76 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 65.5 mm
Working length connection 2 38.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.333
MaximumOperatingPressureLiquid 10
11PK-502640 Henco T-centre and line Reduced 50x26x40 143.5x93.5x56.5 05414764012219

Specifications 11PK-502640

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 79 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 65.5 mm
Working length connection 2 38.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.259
MaximumOperatingPressureLiquid 10
11PK-503240 Henco T-centre and line Reduced 50x32x40 150x105x56.5 05414764012257

Specifications 11PK-503240

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 82 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 32 mm
Contour code connection 2 BE
Length of connection 2 77 mm
Working length connection 2 41 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.2826
MaximumOperatingPressureLiquid 10
11PK-504040 Henco T-centre and line Reduced 50x40x40 159x105x56.5 05414764012295

Specifications 11PK-504040

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 86.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 40 mm
Contour code connection 2 BE
Length of connection 2 76.5 mm
Working length connection 2 40.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.3176
MaximumOperatingPressureLiquid 10
