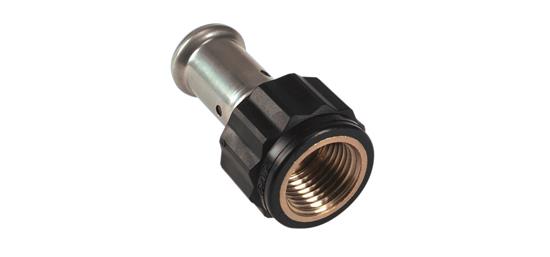

Straight female adapter

Straight female adapter

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Potable water
Heating
compressed air
cooling

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN
18PK-1404 Henco Straight female adapter 14x1/2" 59.5x33.5x33.5 05414764021167

Specifications 18PK-1404

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 14 mm
Contour code connection 1 TH
Length of connection 1 36.5 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 23 mm
Working length connection 2 9 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0669
MaximumOperatingPressureLiquid 10
18PK-1604 Henco Straight female adapter 16x1/2" 59.5x33.5x33.5 05414764021204

Specifications 18PK-1604

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 38 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 21.5 mm
Working length connection 2 7.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0694
MaximumOperatingPressureLiquid 16
18PK-1804 Henco Straight female adapter 18x1/2" 59.5x33.5x33.5 05414764021242

Specifications 18PK-1804

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 18 mm
Contour code connection 1 TH
Length of connection 1 36.5 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 23 mm
Working length connection 2 9 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.071
MaximumOperatingPressureLiquid 10
18PK-1805 Henco Straight female adapter 18x3/4" 62.5x40x40 05414764021280

Specifications 18PK-1805

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 18 mm
Contour code connection 1 TH
Length of connection 1 36.5 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 26 mm
Working length connection 2 10.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0912
MaximumOperatingPressureLiquid 10
18PK-2004 Henco Straight female adapter 20x1/2" 59x33.5x33.5 05414764021327

Specifications 18PK-2004

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 36 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 23 mm
Working length connection 2 9 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0735
MaximumOperatingPressureLiquid 16
18PK-2005 Henco Straight female adapter 20x3/4" 62.5x40x40 05414764021365

Specifications 18PK-2005

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 36.5 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 26 mm
Working length connection 2 10.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0937
MaximumOperatingPressureLiquid 16
18PK-2605 Henco Straight female adapter 26x3/4" 62.5x40x40 05414764021402

Specifications 18PK-2605

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 36.5 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 26 mm
Working length connection 2 10.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1065
MaximumOperatingPressureLiquid 16
18PK-2606 Henco Straight female adapter 26x1" 70x45.5x45.5 05414764021440

Specifications 18PK-2606

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 37 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 33 mm
Working length connection 2 15.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1424
MaximumOperatingPressureLiquid 16
18PK-3206 Henco Straight female adapter 32x1" 81x45.5x45.5 05414764021488

Specifications 18PK-3206

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 49 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 32 mm
Working length connection 2 14.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1596
MaximumOperatingPressureLiquid 16
18PK-3207 Henco Straight female adapter 32x5/4" 89.5x57x57 05414764021525

Specifications 18PK-3207

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 53.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 36 mm
Working length connection 2 16 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.2408
MaximumOperatingPressureLiquid 16
18PK-4006 Henco Straight female adapter 40x1" 74.5x45.5x45.5 05414764021563

Specifications 18PK-4006

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 42 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 32.5 mm
Working length connection 2 15 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1695
MaximumOperatingPressureLiquid 10
18PK-4007 Henco Straight female adapter 40x5/4" 84.5x57x57 05414764021600

Specifications 18PK-4007

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 47.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 37 mm
Working length connection 2 17 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.257
MaximumOperatingPressureLiquid 10
18PK-5008 Henco Straight female adapter 50x6/4" 106.5x68.5x68.5 05414764021648

Specifications 18PK-5008

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 65 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 41.5 mm
Working length connection 2 19.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.4151
MaximumOperatingPressureLiquid 10
18PK-6310 Henco Straight female adapter 63x2" 130.5x89.5x89.5 05414764021686

Specifications 18PK-6310

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 63 mm
Contour code connection 1 BE
Length of connection 1 84.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 46 mm
Working length connection 2 18 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.7582
MaximumOperatingPressureLiquid 10
18PK-4006-N Henco Straight female adapter 40x1" CW724 74.5x45.5x45.5 05414764322899

Specifications 18PK-4006-N

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 42 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 32.5 mm
Working length connection 2 15 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1695
MaximumOperatingPressureLiquid 10
18PK-4007-N Henco Straight female adapter 40x5/4" CW602 84.5x57x57 05414764322974

Specifications 18PK-4007-N

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 47.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 37 mm
Working length connection 2 17 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.257
MaximumOperatingPressureLiquid 10
18PK-5008-N Henco Straight female adapter 50x6/4" CW602 106.5x68.5x68.5 05414764329188

Specifications 18PK-5008-N

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 65 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 41.5 mm
Working length connection 2 19.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.4151
MaximumOperatingPressureLiquid 10
18PK-6310-N Henco Straight female adapter 63x2" CW602 130.5x89.5x89.5 05414764329195

Specifications 18PK-6310-N

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 63 mm
Contour code connection 1 BE
Length of connection 1 84.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 46 mm
Working length connection 2 18 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.7582
MaximumOperatingPressureLiquid 10
