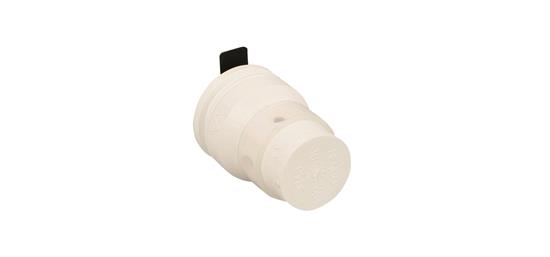

Stop end for pipe

Stop end for pipe

Henco Vision push fittings are made of PVDF and offer the following advantages:
  • Minimal spend on tools: eliminates the need for press tools or spanners
  • Easy to assemble: visual inspection at a glance
  • Save big on time: quick to assemble, foolproof and suitable for a wide range of applications
Advantages of PVDF:
  • Extremely pressure and temperature resistant
  • Outstanding mechanical strength
  • Hugely flexible: can be bent up to 10 degrees.
  • Ideally suited for drinking water and food
  • Can be embedded without extra protection
  • Exceptional chemical and corrosion resistance
  • Vision fittings with brass inserts are finished using ISO228 or ISO07-compliant thread and made of CW602 brass

    • Applications

    Potable water
    Heating
    Cooling
    Sanitary

    Solutions

    Building Installations
    Industry
    Utility

    Product range

    Article number Product description LxBxH GTIN
    SK-PIPESTOP16 Henco Stop end for pipe Ø16 39.5x28x28 05414764091740

    Specifications SK-PIPESTOP16

    Max. operating pressure 10 bar
    Material connection 1 Polyvinylidene fluoride (PVDF)
    Outer pipe diameter connection 1 16 mm
    Material sealing Ethylene-propylene diene monomer rubber (EPDM)
    With drain valve No
    NetWeight 0.0234
    DimensionUnitCode MMT
    MaximumOperatingPressureLiquid 10
    SK-PIPESTOP20 Henco Stop end for pipe Ø20 39.5x33x33 05414764091757

    Specifications SK-PIPESTOP20

    Max. operating pressure 10 bar
    Material connection 1 Polyvinylidene fluoride (PVDF)
    Outer pipe diameter connection 1 20 mm
    Material sealing Ethylene-propylene diene monomer rubber (EPDM)
    With drain valve No
    NetWeight 0.031
    DimensionUnitCode MMT
    MaximumOperatingPressureLiquid 10
    SK-PIPESTOP26 Henco Stop end for pipe Ø26 40.5x40x40 05414764091764

    Specifications SK-PIPESTOP26

    Max. operating pressure 10 bar
    Material connection 1 Polyvinylidene fluoride (PVDF)
    Outer pipe diameter connection 1 26 mm
    Material sealing Ethylene-propylene diene monomer rubber (EPDM)
    With drain valve No
    NetWeight 0.044
    DimensionUnitCode MMT
    MaximumOperatingPressureLiquid 10
