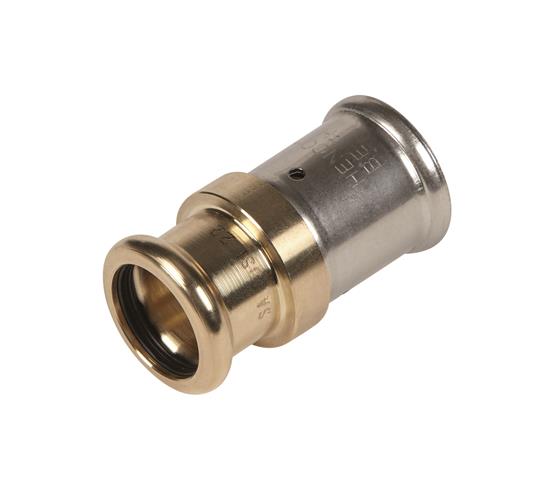

Press-fit adapter to copper press (V, M & SA profile)

Press-fit adapter to copper press (V, M & SA profile)

  • Press-fit adapter (M,V & SA Profile)
  • Quick and more reliable solution than compression fittings
  • M, V & SA-profile can be used on copper side.
  • Can be used in concrete if the fitting is protected
  • Can be used in spaces which are difficult to reach
  • Brass CW724 “CuSi”
  • Compatible with thin-walled steel, copper, stainless steel

Applications

Potable water
Heating
cooling

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN
36P-1612P Henco Press adapter to copper press 16x12 cusi 54x22x22 05414764337824

Specifications 36P-1612P

Max. operating pressure 16 bar
Material connection 1 Brass
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 26 mm
Material connection 2 Brass
Outer pipe diameter connection 2 12 mm
Contour code connection 2 M/F (seal) (expired)
Length of connection 2 25 mm
Working length connection 2 19.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0514
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
36P-1614P Henco Press adapter to copper press 16x14 cusi 55x22x22 05414764337862

Specifications 36P-1614P

Max. operating pressure 16 bar
Material connection 1 Brass
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 26.5 mm
Material connection 2 Brass
Outer pipe diameter connection 2 14 mm
Contour code connection 2 M/F (seal) (expired)
Length of connection 2 25 mm
Working length connection 2 20 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0562
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
36P-1615P Henco Press adapter to copper press 16x15 cusi 55x23x23 05414764337909

Specifications 36P-1615P

Max. operating pressure 16 bar
Material connection 1 Brass
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 27 mm
Material connection 2 Brass
Outer pipe diameter connection 2 15 mm
Contour code connection 2 M/F (seal) (expired)
Length of connection 2 25 mm
Working length connection 2 20 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.063
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
36P-1616P Henco Press adapter to copper press 16x16 cusi 55x24x24 05414764337947

Specifications 36P-1616P

Max. operating pressure 16 bar
Material connection 1 Brass
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 27 mm
Material connection 2 Brass
Outer pipe diameter connection 2 16 mm
Contour code connection 2 M/F (seal) (expired)
Length of connection 2 25 mm
Working length connection 2 20 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0624
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
36P-2018P Henco Press adapter to copper press 20x18 cusi 58x27x27 05414764337695

Specifications 36P-2018P

Max. operating pressure 16 bar
Material connection 1 Brass
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 28.5 mm
Material connection 2 Brass
Outer pipe diameter connection 2 18 mm
Contour code connection 2 M/F (seal) (expired)
Length of connection 2 26 mm
Working length connection 2 20.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.09
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
36P-2022P Henco Press adapter to copper press 20x22 cusi 59x32x32 05414764337749

Specifications 36P-2022P

Max. operating pressure 16 bar
Material connection 1 Brass
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 29 mm
Material connection 2 Brass
Outer pipe diameter connection 2 22 mm
Contour code connection 2 M/F (seal) (expired)
Length of connection 2 26.5 mm
Working length connection 2 22.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.08
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
36P-2622P Henco Press adapter to copper press 26x22 cusi 59x32x32 05414764337787

Specifications 36P-2622P

Max. operating pressure 16 bar
Material connection 1 Brass
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 29 mm
Material connection 2 Brass
Outer pipe diameter connection 2 22 mm
Contour code connection 2 TH
Length of connection 2 26.5 mm
Working length connection 2 22.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1126
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
36P-3228P Henco Press adapter to copper press 32x28 cusi 72x39x39 05414764337985

Specifications 36P-3228P

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 37 mm
Material connection 2 Brass
Outer pipe diameter connection 2 28 mm
Contour code connection 2 BE
Length of connection 2 34 mm
Working length connection 2 31 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1474
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 10
36P-2015P Henco Press adapter to copper press 20x15 cusi 05414764349452

Specifications 36P-2015P

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Material connection 2 Brass
Outer pipe diameter connection 2 15 mm
Contour code connection 2 TH
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0
MaximumOperatingPressureLiquid 10
36P-2628P Henco Press adapter to copper press 26x28 cusi 05414764392205

Specifications 36P-2628P

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 26 mm
Material connection 2 Brass
Outer pipe diameter connection 2 28 mm
Contour code connection 2 M/F (seal) (expired)
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
MaximumOperatingPressureLiquid 10
