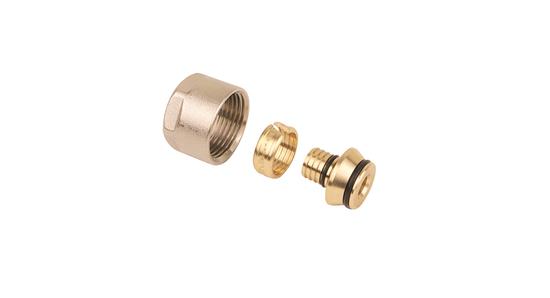

Nickel plated eurocone (3/4"F)

Nickel plated eurocone (3/4"F)

Nickel-plated brass screw fitting with 3/4"F connector

Applications

Potable water
Heating
compressed air

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN

Specifications

SPLIT14 Henco Split olive for eurocone Ø14 05414764059788

Specifications SPLIT14

Material Brass
NetWeight 0.0055
MaximumOperatingPressureLiquid 10
SPLIT16 Henco Split olive for eurocone Ø16 05414764059795

Specifications SPLIT16

Material Brass
NetWeight 0.0046
MaximumOperatingPressureLiquid 10
SPLIT20 Henco Split olive for eurocone Ø20 05414764059825

Specifications SPLIT20

Material Brass
NetWeight 0.0046
MaximumOperatingPressureLiquid 10
EK16-2 Henco Nickel plated eurocone Ø16 (3/4" F) 22x30x30 05414764308831

Specifications EK16-2

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 16 mm
Length of connection 1 10 mm
Material connection 2 Brass
Length of connection 2 12.5 mm
Working length connection 2 12.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.069
MaximumOperatingPressureLiquid 10
EK12-2 Henco Nickel plated eurocone Ø12 (3/4" F) 22x30x30 05414764330498

Specifications EK12-2

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 12 mm
Length of connection 1 10 mm
Material connection 2 Brass
Length of connection 2 12.5 mm
Working length connection 2 12.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0738
MaximumOperatingPressureLiquid 10
EK14-2 Henco Nickel plated eurocone Ø14 (3/4" F) 22x30x30 05414764330528

Specifications EK14-2

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 14 mm
Length of connection 1 10 mm
Material connection 2 Brass
Length of connection 2 12.5 mm
Working length connection 2 12.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0223
MaximumOperatingPressureLiquid 10
EK17-2 Henco Nickel plated eurocone Ø17 (3/4" F) 22x30x30 05414764330580

Specifications EK17-2

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 17 mm
Length of connection 1 10 mm
Material connection 2 Brass
Length of connection 2 12.5 mm
Working length connection 2 12.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0208
MaximumOperatingPressureLiquid 10
EK20-2 Henco Nickel plated eurocone Ø20 (3/4" F) 23x30x30 05414764330641

Specifications EK20-2

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 20 mm
Length of connection 1 11 mm
Material connection 2 Brass
Length of connection 2 12.5 mm
Working length connection 2 12.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0675
MaximumOperatingPressureLiquid 10
EK18-2 Henco Nickel plated eurocone Ø18 (3/4" F) 22x30x30 05414764330610

Specifications EK18-2

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 18 mm
Length of connection 1 10 mm
Material connection 2 Brass
Length of connection 2 12.5 mm
Working length connection 2 12.5 mm
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0212
MaximumOperatingPressureLiquid 10
