Henco tube with colour coded conduit RIXc

Henco tube with colour coded conduit RIXc

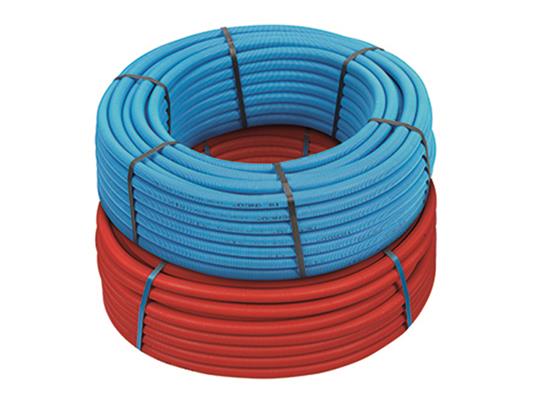

The Henco multilayer pipe in a corrugated pipe. The protective pipe is made from polyethylene and provides extra protection, while carrying out the construction work. This protective pipe is available in various colours.

Henco multilayer pipe with all the advantages of plastic and metal

  • Butt welded aluminium pipe
  • 100% oxygen-tight and water vapour diffusion tight
  • Low coefficient of linear expansion, similar to metal pipe
  • Entirely corrosion-resistant, also resistant against chemicals and electrochemicals
  • Sound-insulation similar to entirely plastic pipe
  • Electron beam crosslinked inner and outer pipe
  • High resistance to pressure and temperature
  • Smooth surface, less loss of pressure
  • Light as synthetic piping
  • Flexible, easy to bend even at low temperatures, retains shape after bending

Applications

Potable water
Heating
cooling
compressed air

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN
50-R18MR Henco RIXc Ø18x2 with Protection hose Red 50m 05414764056855

Specifications 50-R18MR

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 18 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.1748
MaximumOperatingPressureLiquid 10
50-R18MB Henco RIXc Ø18x2 with Protection hose Blue 50m 05414764056831

Specifications 50-R18MB

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 18 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.1748
MaximumOperatingPressureLiquid 10
25-R16MR Henco RIXc Ø16x2 with Protection hose Red 25m 05414764055278

Specifications 25-R16MR

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 16 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.165
MaximumOperatingPressureLiquid 10
25-R16MB Henco RIXc Ø16x2 with Protection hose Blue 25m 05414764055254

Specifications 25-R16MB

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 16 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.165
MaximumOperatingPressureLiquid 10
50-R16MR Henco RIXc Ø16x2 with Protection hose Red 50m 05414764036819

Specifications 50-R16MR

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 16 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.165
MaximumOperatingPressureLiquid 10
50-R16MB Henco RIXc Ø16x2 with Protection hose Blue 50m 05414764036796

Specifications 50-R16MB

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 16 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.165
MaximumOperatingPressureLiquid 10
100-R16MR Henco RIXc Ø16x2 with Protection hose Red 100m 05414764007864

Specifications 100-R16MR

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 16 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.165
MaximumOperatingPressureLiquid 10
100-R16MB Henco RIXc Ø16x2 with Protection hose Blue 100m 05414764007840

Specifications 100-R16MB

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 16 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.165
MaximumOperatingPressureLiquid 10
25-R20MR Henco RIXc Ø20x2 with Protection hose Red 25m 05414764055308

Specifications 25-R20MR

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 20 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.2086
MaximumOperatingPressureLiquid 10
25-R20MB Henco RIXc Ø20x2 with Protection hose Blue 25m 05414764055285

Specifications 25-R20MB

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 20 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.2086
MaximumOperatingPressureLiquid 10
50-R20MR Henco RIXc Ø20x2 with Protection hose Red 50m 05414764036840

Specifications 50-R20MR

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 20 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.2086
MaximumOperatingPressureLiquid 10
50-R20MB Henco RIXc Ø20x2 with Protection hose Blue 50m 05414764036826

Specifications 50-R20MB

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 20 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.2086
MaximumOperatingPressureLiquid 10
100-R20MR Henco RIXc Ø20x2 with Protection hose Red 100m 05414764008083

Specifications 100-R20MR

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 20 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.2086
MaximumOperatingPressureLiquid 10
100-R20MB Henco RIXc Ø20x2 with Protection hose Blue 100m 05414764008069

Specifications 100-R20MB

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 20 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.2086
MaximumOperatingPressureLiquid 10
50-R26MR Henco RIXc Ø26x3 with Protection hose Red 50m 05414764056947

Specifications 50-R26MR

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 26 mm
Wall thickness 3 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.3422
MaximumOperatingPressureLiquid 10
50-R26MB Henco RIXc Ø26x3 with Protection hose Blue 50m 05414764056923

Specifications 50-R26MB

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 26 mm
Wall thickness 3 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Min. medium temperature (continuous) -10 °C
Max. medium temperature (momentarily) 95 °C
NetWeight 0.3422
MaximumOperatingPressureLiquid 10
