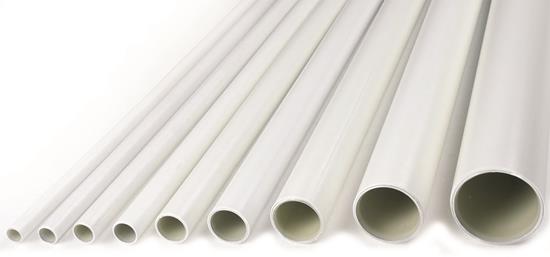

Henco multilayer pipe Standard (Straight length)

Henco multilayer pipe Standard (Straight length)

Henco multilayer pipe with all the advantages of plastic and metal

  • Butt welded aluminium pipe
  • 100% oxygen-tight and water vapour diffusion tight
  • Low coefficient of linear expansion, similar to metal pipe
  • Entirely corrosion-resistant, also resistant against chemicals and electrochemicals
  • Sound-insulation similar to entirely plastic pipe
  • Electron beam crosslinked inner and outer pipe
  • High resistance to pressure and temperature
  • Smooth surface, less loss of pressure
  • Light as synthetic piping
  • Flexible, easy to bend even at low temperatures, retains shape after bending

Applications

Potable water
Heating
cooling
compressed air
demi Water

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN
03-160212 Henco Standard straight length Ø16x2 3m 05414764070813

Specifications 03-160212

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 16 mm
Wall thickness 2 mm
Max. operating pressure 16 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.1168
MaximumOperatingPressureLiquid 16
05-160212 Henco Standard straight length Ø16x2 5m 05414764001213

Specifications 05-160212

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 16 mm
Wall thickness 2 mm
Max. operating pressure 16 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.1168
MaximumOperatingPressureLiquid 16
03-180214 Henco Standard straight length Ø18x2 3m 05414764069909

Specifications 03-180214

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 18 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.1367
MaximumOperatingPressureLiquid 10
05-180214 Henco Standard straight length Ø18x2 5m 05414764001411

Specifications 05-180214

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 18 mm
Wall thickness 2 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.1367
MaximumOperatingPressureLiquid 10
03-200216 Henco Standard straight length Ø20x2 3m 05414764069923

Specifications 03-200216

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 20 mm
Wall thickness 2 mm
Max. operating pressure 16 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.1478
MaximumOperatingPressureLiquid 16
05-200216 Henco Standard straight length Ø20x2 5m 05414764001473

Specifications 05-200216

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 20 mm
Wall thickness 2 mm
Max. operating pressure 16 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.1478
MaximumOperatingPressureLiquid 16
03-260320 Henco Standard straight length Ø26x3 3m 05414764070899

Specifications 03-260320

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 26 mm
Wall thickness 3 mm
Max. operating pressure 16 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.2811
MaximumOperatingPressureLiquid 16
05-260320 Henco Standard straight length Ø26x3 5m 05414764001718

Specifications 05-260320

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 26 mm
Wall thickness 3 mm
Max. operating pressure 16 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.2811
MaximumOperatingPressureLiquid 16
03-320326 Henco Standard straight length Ø32x3 3m 05414764070936

Specifications 03-320326

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 32 mm
Wall thickness 3 mm
Max. operating pressure 16 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.3774
MaximumOperatingPressureLiquid 16
05-320326 Henco Standard straight length Ø32x3 5m 05414764001954

Specifications 05-320326

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 32 mm
Wall thickness 3 mm
Max. operating pressure 16 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.3774
MaximumOperatingPressureLiquid 16
03-403533 Henco Standard straight length Ø40x3,5 3m 05414764070967

Specifications 03-403533

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 40 mm
Wall thickness 3.5 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.52
MaximumOperatingPressureLiquid 10
05-403533 Henco Standard straight length Ø40x3,5 5m 05414764002227

Specifications 05-403533

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 40 mm
Wall thickness 3.5 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.52
MaximumOperatingPressureLiquid 10
03-504042 Henco Standard straight length Ø50x4 3m 05414764071001

Specifications 03-504042

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 50 mm
Wall thickness 4 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.789
MaximumOperatingPressureLiquid 10
05-504042 Henco Standard straight length Ø50x4 5m 05414764002449

Specifications 05-504042

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 50 mm
Wall thickness 4 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 0.789
MaximumOperatingPressureLiquid 10
03-634554 Henco Standard straight length Ø63x4,5 3m 05414764071032

Specifications 03-634554

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 63 mm
Wall thickness 4.5 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 1.189
MaximumOperatingPressureLiquid 10
05-634554 Henco Standard straight length Ø63x4,5 5m 05414764002531

Specifications 05-634554

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 63 mm
Wall thickness 4.5 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 1.189
MaximumOperatingPressureLiquid 10
05-756063 Henco Standard straight length Ø75x6 5m 05414764052932

Specifications 05-756063

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 75 mm
Wall thickness 6 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 1.5077
MaximumOperatingPressureLiquid 10
05-907076 Henco Standard straight lengths Ø90x7,0 5m 05414764212060

Specifications 05-907076

Material inner layer Plastic
Material intermediate layer Aluminium
Outer pipe diameter 90 mm
Wall thickness 7 mm
Max. operating pressure 10 bar
Expansion coefficient 0.03 mm/(m.K)
Max. medium temperature (momentarily) 95 °C
NetWeight 2.1557
MaximumOperatingPressureLiquid 10
