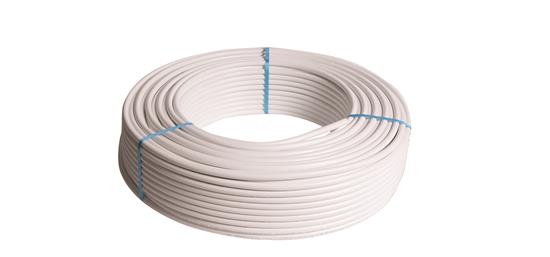

Henco multilayer pipe Standard (Coil)
Henco multilayer pipe with all the advantages of plastic and metal
- Butt welded aluminium pipe
- 100% oxygen-tight and water vapour diffusion tight
- Low coefficient of linear expansion, similar to metal pipe
- Entirely corrosion-resistant, also resistant against chemicals and electrochemicals
- Sound-insulation similar to entirely plastic pipe
- Electron beam crosslinked inner and outer pipe
- High resistance to pressure and temperature
- Smooth surface, less loss of pressure
- Light as synthetic piping
- Flexible, easy to bend even at low temperatures, retains shape after bending
Applications
Potable water
Heating
cooling
compressed air
demi Water
Solutions
Building Installations
Industry
Underfloor heating
Assortiment
- Articlenumber Product description LxBxH GTIN
-
100-121688
Henco Standard Ø12x1,6 100m
05414764158719
Specifications
Specifications 100-121688
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 12 mm
- Wall thickness 1.6 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.0634
- MaximumOperatingPressureLiquid 10
-
200-121688
Henco Standard Ø12x1,6 200m
05414764158764
Specifications
Specifications 200-121688
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 12 mm
- Wall thickness 1.6 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.0634
- MaximumOperatingPressureLiquid 10
-
50-140210
Henco Standard Ø14x2 50m
05414764032705
Specifications
Specifications 50-140210
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 14 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1025
- MaximumOperatingPressureLiquid 16
-
100-140210
Henco Standard Ø14x2 100m
05414764003361
Specifications
Specifications 100-140210
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 14 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1025
- MaximumOperatingPressureLiquid 16
-
200-140210
Henco Standard Ø14x2 200m
05414764023208
Specifications
Specifications 200-140210
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 14 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1025
- MaximumOperatingPressureLiquid 16
-
50-160212
Henco Standard Ø16x2 50m
05414764032767
Specifications
Specifications 50-160212
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1168
- MaximumOperatingPressureLiquid 16
-
100-160212
Henco Standard Ø16x2 100m
05414764003934
Specifications
Specifications 100-160212
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1168
- MaximumOperatingPressureLiquid 16
-
200-160212
Henco Standard Ø16x2 200m
05414764023505
Specifications
Specifications 200-160212
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1168
- MaximumOperatingPressureLiquid 16
-
100-180214
Henco Standard Ø18x2 100m
05414764004740
Specifications
Specifications 100-180214
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 18 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1367
- MaximumOperatingPressureLiquid 16
-
200-180214
Henco Standard Ø18x2 200m
05414764024076
Specifications
Specifications 200-180214
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 18 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1367
- MaximumOperatingPressureLiquid 16
-
25-200216
Henco Standard Ø20x2 25m
05414764173644
Specifications
Specifications 25-200216
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 20 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1478
- MaximumOperatingPressureLiquid 16
-
50-200216
Henco Standard Ø20x2 50m
05414764032880
Specifications
Specifications 50-200216
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 20 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1478
- MaximumOperatingPressureLiquid 16
-
100-200216
Henco Standard Ø20x2 100m
05414764005280
Specifications
Specifications 100-200216
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 20 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1478
- MaximumOperatingPressureLiquid 16
-
50-260320
Henco Standard Ø26x3 50m
05414764032958
Specifications
Specifications 50-260320
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 26 mm
- Wall thickness 3 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.2811
- MaximumOperatingPressureLiquid 16
-
50-320326
Henco Standard Ø32x3 50m
05414764033979
Specifications
Specifications 50-320326
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 32 mm
- Wall thickness 3 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.3774
- MaximumOperatingPressureLiquid 16
-
Specifications
Specifications
-
500-160212D
Henco Standard Ø16x2 500m
05414764070028
Specifications
Specifications 500-160212D
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.18 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- NetWeight 0.1168
- MaximumOperatingPressureLiquid 16
-
25-260320
Henco Standard Ø26x3 25m
05414764026841
Specifications
Specifications 25-260320
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 26 mm
- Wall thickness 3 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 6.9
- MaximumOperatingPressureLiquid 16
-
200-200216
Henco Standard Ø20x2 200m
05414764024373
Specifications
Specifications 200-200216
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 20 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 29.5
- MaximumOperatingPressureLiquid 16
-
25-320326
Henco Standard Ø32x3 25m
05414764068551
Specifications
Specifications 25-320326
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 32 mm
- Wall thickness 3 mm
- Max. operating pressure 16 bar
- Expansion coefficient 0.03 mm/(m.K)
- Min. medium temperature (continuous) -10 °C
- Max. medium temperature (momentarily) 95 °C
- NetWeight 9.6
- MaximumOperatingPressureLiquid 16
