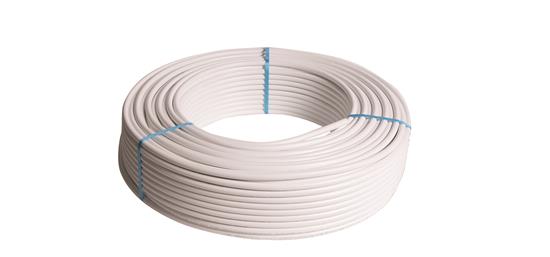

Henco multilayer pipe RIXc (Coil)
Henco multilayer pipes offer all the advantages of metal and plastic:
- Aluminium inner core, seamlessly welded longitudinally
- 100 % oxygen-tight
- Minimal linear expansion coefficient comparable to metal
- Fully corrosion-resistant, including against chemical and electrochemical impacts
- Dampens noise, as typical of a plastic pipe
- Inner and outer pipe made of electron-beam cross-linked polyethylene
- High resistance to pressure and temperature
- Smooth surface: low pressure loss
- As light as a plastic pipe
- Flexible, easy to bend. The pipe retains its curved shape even in low temperatures
Applications
Potable water
Heating
Cooling
Compressed air
Demi Water
Underfloor Heating
Sanitary
Solutions
Building Installations
Industry
Underfloor heating
Utility
Product range
- Article number Product description LxBxH GTIN
-
200-R180214
Henco RIXc Ø18x2 200m
1000x18x18
05414764070349
Specifications
Specifications 200-R180214
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 18 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1173
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
50-R160212
Henco RIXc Ø16x2 50m
1000x16x16
05414764036789
Specifications
Specifications 50-R160212
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
100-R160212
Henco RIXc Ø16x2 100m
1000x16x16
05414764007628
Specifications
Specifications 100-R160212
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
200-R160212
Henco RIXc Ø16x2 200m
1000x16x16
05414764024632
Specifications
Specifications 200-R160212
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
500-R160212
Henco RIXc Ø16x2 500m
1000x16x16
05414764274204
Specifications
Specifications 500-R160212
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
100-R200216
Henco RIXc Ø20x2 100m
1000x20x20
05414764007871
Specifications
Specifications 100-R200216
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 20 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1411
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
50-R260320
Henco RIXc Ø26x3 50m
1000x26x26
05414764036857
Specifications
Specifications 50-R260320
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 26 mm
- Wall thickness 3 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.2547
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
50-R180214
Henco RIXc Ø18x2 50m
1000x18x18
05414764180758
Specifications
Specifications 50-R180214
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 18 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1173
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
25-R260320
Henco RIXc Ø26x3 25m
1000x26x26
05414764180666
Specifications
Specifications 25-R260320
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 26 mm
- Wall thickness 3 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.2547
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
500-R160212D
Henco RIXc Ø16x2 500m
1000x16x16
05414764032408
Specifications
Specifications 500-R160212D
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 16 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
50-R200216
Henco RIXc Ø20x2 50m
1000x20x20
05414764079847
Specifications
Specifications 50-R200216
- Material inner layer Plastic
- Material intermediate layer Aluminium
- Outer pipe diameter 20 mm
- Wall thickness 2 mm
- Max. operating pressure 10 bar
- Expansion coefficient 0.03 mm/(m.K)
- Max. medium temperature (momentarily) 95 °C
- NetWeight 0.1411
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
