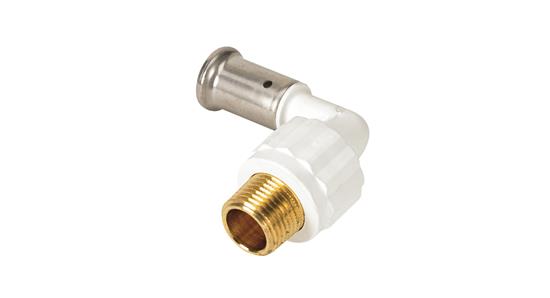

Elbow 90° male adapter

Elbow 90° male adapter

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Potable water
Heating
compressed air
cooling

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN
5PKW-1604 Henco Bend 90° male adapter White 16x1/2" 70.5x65x33 05414764217218

Specifications 5PKW-1604

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Brass
Length of connection 2 53.5 mm
Working length connection 2 39 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.0972
MaximumOperatingPressureLiquid 16
5PKW-2004 Henco Bend 90° male adapter White 20x1/2" 70.5x70x33 05414764218222

Specifications 5PKW-2004

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Brass
Length of connection 2 57 mm
Working length connection 2 42.5 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.1051
MaximumOperatingPressureLiquid 16
5PKW-2005 Henco Bend 90° male adapter White 20x3/4" 78.5x71.5x40 05414764218543

Specifications 5PKW-2005

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 59 mm
Material connection 2 Brass
Length of connection 2 58.5 mm
Working length connection 2 42 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.1451
MaximumOperatingPressureLiquid 16
5PKW-2605 Henco Bend 90° male adapter White 26x3/4" 79x78.5x40 05414764217942

Specifications 5PKW-2605

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 59 mm
Material connection 2 Brass
Length of connection 2 62.5 mm
Working length connection 2 46 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.1625
MaximumOperatingPressureLiquid 16
5PKW-3206 Henco Bend 90° male adapter White 32x1" 96x87x45.5 05414764218468

Specifications 5PKW-3206

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 73.5 mm
Material connection 2 Brass
Length of connection 2 68 mm
Working length connection 2 50 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.232
MaximumOperatingPressureLiquid 10
5PKW-1604-N Henco Bend 90° male adapter White 16x1/2" CW602 70.5x65x33 05414764318649

Specifications 5PKW-1604-N

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Brass
Length of connection 2 53.5 mm
Working length connection 2 39 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.0972
MaximumOperatingPressureLiquid 16
5PKW-2004-N Henco Bend 90° male adapter White 20x1/2" CW602 70.5x70x33 05414764318601

Specifications 5PKW-2004-N

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Brass
Length of connection 2 57 mm
Working length connection 2 42.5 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.1051
MaximumOperatingPressureLiquid 16
5PKW-2005-N Henco Bend 90° male adapter White 20x3/4" CW602 78.5x71.5x40 05414764318564

Specifications 5PKW-2005-N

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 59 mm
Material connection 2 Brass
Length of connection 2 58.5 mm
Working length connection 2 42 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.1451
MaximumOperatingPressureLiquid 16
5PKW-2605-N Henco Bend 90° male adapter White 26x3/4" CW602 79x78.5x40 05414764318526

Specifications 5PKW-2605-N

Max. operating pressure 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 59 mm
Material connection 2 Brass
Length of connection 2 62.5 mm
Working length connection 2 46 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.1625
MaximumOperatingPressureLiquid 16
5PKW-3206-N Henco Bend 90° male adapter White 32x1" CW602 96x87x45.5 05414764318489

Specifications 5PKW-3206-N

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 73.5 mm
Material connection 2 Brass
Length of connection 2 68 mm
Working length connection 2 50 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Min. medium temperature (continuous) -10 °C
With drain No
NetWeight 0.232
MaximumOperatingPressureLiquid 10
