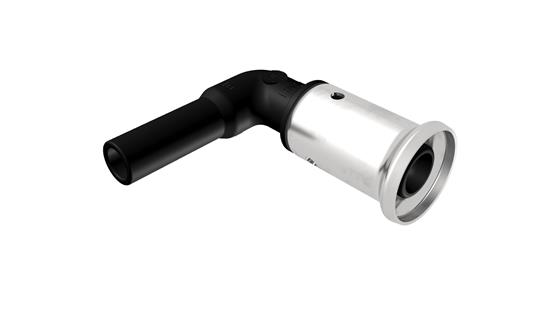

1PK-JG Elbow (90°), 16x10 spigot for climate ceilings:

  • Suitable for Henco multilayer pipes measuring 16 and 20 mm in diameter
  • Body material: PVDF (polyvinylidene fluoride)
  • Press fitting material: stainless steel
  • O-ring material: EPDM
  • Spigot diameter: 10 mm
  • Suitable press profiles: TH/BE for pipes measuring 16 and 20 mm in diameter
  • Fitting body colour: black
  • Suitable for drinking water and heating
  • Fitted with leak detection (Leak Before Press)
  • Fittings can be embedded without protection
  • Flexible: can be bent up to 10 degrees
  • Extremely pressure and temperature resistant
  • Outstanding mechanical strength
  • Exceptional chemical and corrosion resistance

Applications

Cooling
Potable water
Heating
Compressed air
Demi Water
Sanitary

Solutions

Building Installations
Industry
Utility
Shipbuilding

Product range

Article number Product description LxBxH GTIN

Specifications

1PK-20JG10 Henco Elbow 90° 20xJG10 54x54x26 05414764311183

Specifications 1PK-20JG10

Max. operating pressure 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 47.3 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 41 mm
Working length connection 2 41 mm
Shape Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain valve No
NetWeight 0.026
DimensionUnitCode MMT
MaximumOperatingPressureLiquid 10
