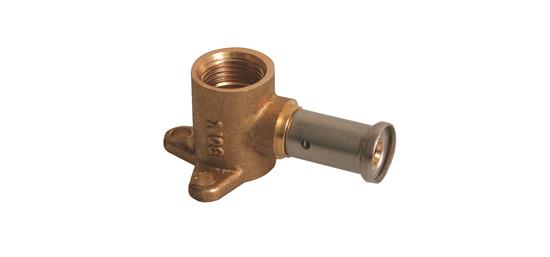

Backplate elbow female, short model

Backplate elbow female, short model

Applications

Potable water
Heating
compressed air

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN
2P-1404K Henco Backplate elbow female short model 14x1/2" 76x52x35 05414764028845

Specifications 2P-1404K

Max. operating pressure 16 bar
Outer pipe diameter connection 1 14 mm
Length of connection 1 30.5 mm
Length of connection 2 32 mm
Working length connection 2 32 mm
Shape Right-angled
NetWeight 0.133
MaximumOperatingPressureLiquid 16
2P-1604K Henco Backplate elbow female short model16x1/2" 74x52x35 05414764028920

Specifications 2P-1604K

Max. operating pressure 16 bar
Outer pipe diameter connection 1 16 mm
Length of connection 1 30.5 mm
Length of connection 2 32 mm
Working length connection 2 32 mm
Shape Right-angled
NetWeight 0.1294
MaximumOperatingPressureLiquid 16
