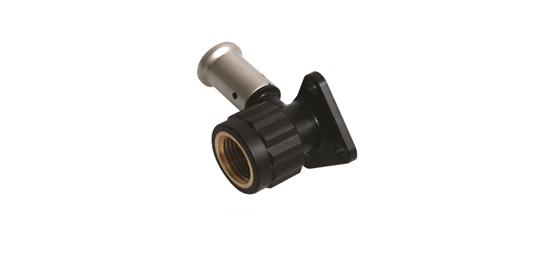

Backplate elbow female, short model

Backplate elbow female, short model

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection


Potable water
compressed air


Building Installations


Articlenumber Product description LxBxH GTIN
2PK-1604KBP Henco Backplate elbow female short model 16x1/2" 78x52x41 05414764055421

Specifications 2PK-1604KBP

Max. operating pressure 16 bar
Outer pipe diameter connection 1 16 mm
Length of connection 1 52 mm
Length of connection 2 30 mm
Working length connection 2 16 mm
Shape Right-angled
Zeta value 1.44
NetWeight 0.0809
MaximumOperatingPressureLiquid 16
