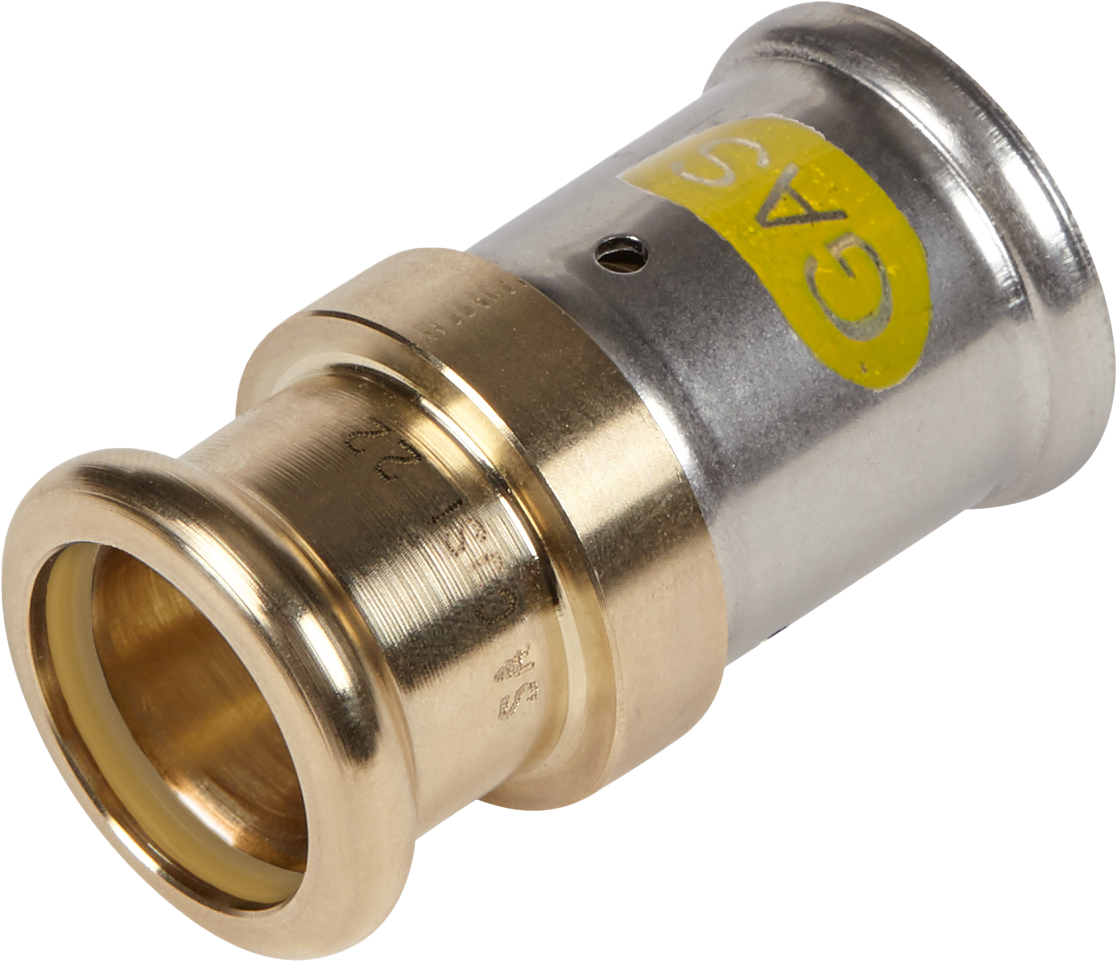

Press-fit adapter to copper press (V, M & SA profile)
Henco brass press fittings for gas: when safety is of vital importance.
36PG Brass adapters, Henco press fitting x copper press fitting for gas:
- Suitable for Henco multilayer pipes measuring 16, 20 and 26 mm in diameter
- Body material: brass (CW617)
- Press fitting material: stainless steel
- Marking colour on press fitting: yellow
- O-ring material: HNBR
- Connection 1: Henco press fitting
- Connection 2: copper press fitting
- Connection 2 sizes: 15 and 22 mm
- Suitable press profiles for connection 1: TH/BE for pipes measuring 16, 20 and 26 mm in diameter
- Suitable press profiles for connection 2: V, M and SA for copper pipes measuring 15 and 22 mm in diameter
- Suitable for gas
- Fitted with leak detection (Leak Before Press)
- Extremely pressure and temperature resistant
- Fitted with a thrust washer to prevent electrolysis
- Comes with three viewing windows
Applications
Natural gas
Solutions
Building Installations
Industry
Oil & Gas
Utility
Shipbuilding
Product range
- Article number Product description LxBxH GTIN
-
36PG-1615P
Henco Press adapter to copper press Gas 16x15
55x23x23
05414764345348
Specifications
Specifications 36PG-1615P
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 16 mm
- Contour code connection 1 TH
- Length of connection 1 27 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 15 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 25 mm
- Working length connection 2 20 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.063
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
36PG-2015P
Henco Press adapter to copper press Gas 20x15
55x26x26
05414764345379
Specifications
Specifications 36PG-2015P
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Material connection 2 Brass
- Outer pipe diameter connection 2 15 mm
- Contour code connection 2 M/F (seal) (expired)
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.0686
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
36PG-2022P
Henco Press adapter to copper press Gas 20x22
59x32x32
05414764345416
Specifications
Specifications 36PG-2022P
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Length of connection 1 29 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 22 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 26.5 mm
- Working length connection 2 22.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.0918
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
36PG-2615P
Henco Press adapter to copper press Gas 26x15
55.4x32.3x32.3
05414764345454
Specifications
Specifications 36PG-2615P
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 26 mm
- Contour code connection 1 TH
- Material connection 2 Brass
- Outer pipe diameter connection 2 15 mm
- Contour code connection 2 M/F (seal) (expired)
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.1008
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
36PG-2622P
Henco Press adapter to copper press Gas 26x22
59x32x32
05414764345492
Specifications
Specifications 36PG-2622P
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 26 mm
- Contour code connection 1 TH
- Length of connection 1 29 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 22 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 26.5 mm
- Working length connection 2 22.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.1116
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
