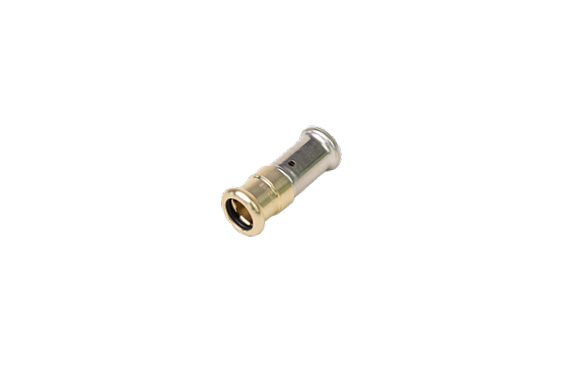

Press-fit adapter to copper press (V, M & SA profile)
Henco brass press fittings: the best solution for every situation.
36P Brass (CW724) adapters, Henco press fitting to copper press fitting (V, M and SA profile):
- Suitable for Henco multilayer pipes measuring 16, 20, 26 and 32 mm in diameter
- Body material: brass (CW724)
- Press fitting material: stainless steel
- O-ring material: EPDM
- Connection 1: Henco press fitting, 16, 20, 26 or 32 mm
- Connection 2: copper press fitting, 12, 14, 15, 16, 18, 20, 22 or 28 mm
- Suitable press fitting profiles: TH/BE for Henco pipes measuring 16, 20 and 26 mm in diameter
- Suitable press profiles: V, M or SA for copper pipes measuring 12, 14, 15, 16, 18, 20, 22 and 28 mm in diameter
- Suitable for drinking water and heating
- Fitted with leak detection (Leak Before Press)
- Extremely pressure and temperature resistant
- Fitted with a thrust washer to prevent electrolysis
- Press fittings come with three viewing windows
Applications
Potable water
Heating
Cooling
Compressed air
Sanitary
Solutions
Building Installations
Industry
Utility
Shipbuilding
Product range
- Article number Product description LxBxH GTIN
-
36P-1612P
Henco Press adapter to copper press 16x12 cusi
54x22x22
05414764337824
Specifications
Specifications 36P-1612P
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 16 mm
- Contour code connection 1 TH
- Length of connection 1 26 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 12 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 25 mm
- Working length connection 2 19.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.0514
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
36P-1614P
Henco Press adapter to copper press 16x14 cusi
55x22x22
05414764337862
Specifications
Specifications 36P-1614P
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 16 mm
- Contour code connection 1 TH
- Length of connection 1 26.5 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 14 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 25 mm
- Working length connection 2 20 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.0562
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
36P-1615P
Henco Press adapter to copper press 16x15 cusi
55x23x23
05414764337909
Specifications
Specifications 36P-1615P
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 16 mm
- Contour code connection 1 TH
- Length of connection 1 27 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 15 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 25 mm
- Working length connection 2 20 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.063
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
36P-1616P
Henco Press adapter to copper press 16x16 cusi
55x24x24
05414764337947
Specifications
Specifications 36P-1616P
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 16 mm
- Contour code connection 1 TH
- Length of connection 1 27 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 16 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 25 mm
- Working length connection 2 20 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.0624
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
36P-2018P
Henco Press adapter to copper press 20x18 cusi
58x27x27
05414764337695
Specifications
Specifications 36P-2018P
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Length of connection 1 28.5 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 18 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 26 mm
- Working length connection 2 20.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.09
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
36P-2022P
Henco Press adapter to copper press 20x22 cusi
59x32x32
05414764337749
Specifications
Specifications 36P-2022P
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Length of connection 1 29 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 22 mm
- Contour code connection 2 M/F (seal) (expired)
- Length of connection 2 26.5 mm
- Working length connection 2 22.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.08
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
36P-2622P
Henco Press adapter to copper press 26x22 cusi
59x32x32
05414764337787
Specifications
Specifications 36P-2622P
- Max. operating pressure 16 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 26 mm
- Contour code connection 1 TH
- Length of connection 1 29 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 22 mm
- Contour code connection 2 TH
- Length of connection 2 26.5 mm
- Working length connection 2 22.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.1126
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
36P-3228P
Henco Press adapter to copper press 32x28 cusi
72x39x39
05414764337985
Specifications
Specifications 36P-3228P
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 32 mm
- Contour code connection 1 BE
- Length of connection 1 37 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 28 mm
- Contour code connection 2 BE
- Length of connection 2 34 mm
- Working length connection 2 31 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.1474
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
36P-2015P
Henco Press adapter to copper press 20x15 cusi
55x26x26
05414764349452
Specifications
Specifications 36P-2015P
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Material connection 2 Brass
- Outer pipe diameter connection 2 15 mm
- Contour code connection 2 TH
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.067
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
36P-2628P
Henco Press adapter to copper press 26x28 cusi
62x38x62
05414764392205
Specifications
Specifications 36P-2628P
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 26 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 28 mm
- Contour code connection 2 M/F (seal) (expired)
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.13
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
