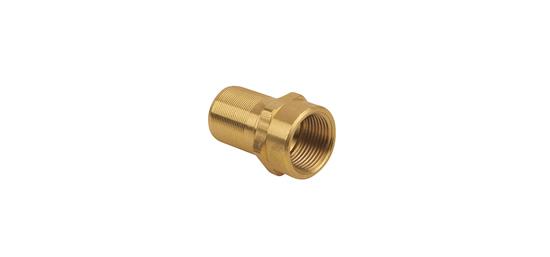

Straight nipple female

Straight nipple female

The supply and feed-through of Henco plastic manifolds can be fitted with male (17SKS) or female (18SKS) straight adapters. These adapters are made from brass. Only combinations with Henco Vision push-fit fittings with a diameter of 20 or 26 mm are possible.

Applications

Potable water
Heating
Cooling
Sanitary

Solutions

Building Installations
Industry
Utility

Product range

Article number Product description LxBxH GTIN
18SKS-2004 Straight female adapter 20x1/2" 48x30x30 05414764182448

Specifications 18SKS-2004

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 20 mm
Material connection 2 Brass
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain valve No
NetWeight 0.0675
DimensionUnitCode MMT
MaximumOperatingPressureLiquid 10
18SKS-2005 Straight female adapter 20x3/4" 53x36x36 05414764182462

Specifications 18SKS-2005

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 20 mm
Material connection 2 Brass
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain valve No
NetWeight 0.0932
DimensionUnitCode MMT
MaximumOperatingPressureLiquid 10
18SKS-2604 Straight female adapter 26x1/2" 47x34x34 05414764182509

Specifications 18SKS-2604

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 26 mm
Material connection 2 Brass
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain valve No
NetWeight 0.1025
DimensionUnitCode MMT
MaximumOperatingPressureLiquid 10
18SKS-2605 Straight female adapter 26x3/4" 50x36x36 05414764182486

Specifications 18SKS-2605

Max. operating pressure 10 bar
Material connection 1 Brass
Outer pipe diameter connection 1 26 mm
Material connection 2 Brass
Shape Straight
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain valve No
NetWeight 0.108
DimensionUnitCode MMT
MaximumOperatingPressureLiquid 10
