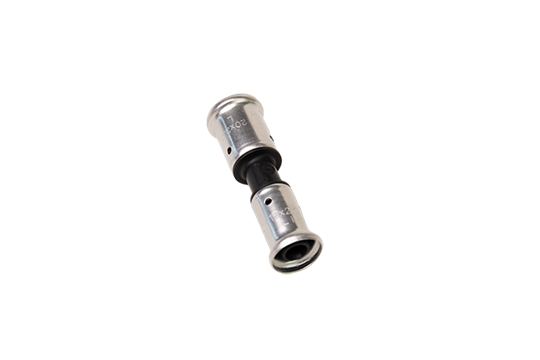

Reducing coupling
Henco plastic press fittings: the best solution for every situation.
16PK Reducing couplers:
- Suitable for Henco multilayer pipes measuring 14, 16, 18, 20, 26, 32, 40, 50, 63, 75 and 90 mm in diameter
- Body material: PVDF (polyvinylidene fluoride)
- Press fitting material: stainless steel
- O-ring material: EPDM
- Suitable press profiles: TH/BE for pipes measuring 14, 16, 18, 20 and 26 mm in diameter; BE for pipes measuring 32, 40, 50, 63, 75 and 90 mm in diameter
- Fitting body colour: black
- Suitable for drinking water and heating
- Fitted with leak detection (Leak Before Press)
- Fittings can be embedded without protection
- Flexible: can be bent up to 10 degrees
- Extremely pressure and temperature resistant
- Outstanding mechanical strength
- Exceptional chemical and corrosion resistance
Applications
Potable water
Heating
Compressed air
Cooling
Demi Water
Sanitary
Solutions
Building Installations
Industry
Utility
Shipbuilding
Product range
- Article number Product description LxBxH GTIN
-
16PK-1614
Henco Reducing coupling 16x14
80x22x22
05414764018266
Specifications
Specifications 16PK-1614
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 16 mm
- Contour code connection 1 TH
- Length of connection 1 40 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 14 mm
- Contour code connection 2 TH
- Length of connection 2 40 mm
- Working length connection 2 13 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.95
- With drain valve No
- NetWeight 0.0281
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-1814
Henco Reducing coupling 18x14
81x24x24
05414764018303
Specifications
Specifications 16PK-1814
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 18 mm
- Contour code connection 1 TH
- Length of connection 1 40.5 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 14 mm
- Contour code connection 2 TH
- Length of connection 2 40.5 mm
- Working length connection 2 13.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.91
- With drain valve No
- NetWeight 0.0308
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-1816
Henco Reducing coupling 18x16
80x24x24
05414764018341
Specifications
Specifications 16PK-1816
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 18 mm
- Contour code connection 1 TH
- Length of connection 1 40 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 16 mm
- Contour code connection 2 TH
- Length of connection 2 40 mm
- Working length connection 2 13 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.72
- With drain valve No
- NetWeight 0.0319
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-2014
Henco Reducing coupling 20x14
79x26x26
05414764140950
Specifications
Specifications 16PK-2014
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Length of connection 1 39.5 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 14 mm
- Contour code connection 2 TH
- Length of connection 2 39.5 mm
- Working length connection 2 12.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.84
- With drain valve No
- NetWeight 0.0329
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-2016
Henco Reducing coupling 20x16
79.5x26x26
05414764018389
Specifications
Specifications 16PK-2016
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Length of connection 1 40 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 16 mm
- Contour code connection 2 TH
- Length of connection 2 40 mm
- Working length connection 2 13 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.77
- With drain valve No
- NetWeight 0.0357
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-2018
Henco Reducing coupling 20x18
80.5x26x26
05414764018426
Specifications
Specifications 16PK-2018
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 20 mm
- Contour code connection 1 TH
- Length of connection 1 40.5 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 18 mm
- Contour code connection 2 TH
- Length of connection 2 40.5 mm
- Working length connection 2 13.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.67
- With drain valve No
- NetWeight 0.0364
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-2616
Henco Reducing coupling 26x16
84x32.5x32.5
05414764018464
Specifications
Specifications 16PK-2616
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 26 mm
- Contour code connection 1 TH
- Length of connection 1 42 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 16 mm
- Contour code connection 2 TH
- Length of connection 2 42 mm
- Working length connection 2 15 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.75
- With drain valve No
- NetWeight 0.0495
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-2618
Henco Reducing coupling 26x18
84.5x32.5x32.5
05414764018501
Specifications
Specifications 16PK-2618
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 26 mm
- Contour code connection 1 TH
- Length of connection 1 42.5 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 18 mm
- Contour code connection 2 TH
- Length of connection 2 42.5 mm
- Working length connection 2 15.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.81
- With drain valve No
- NetWeight 0.051
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-2620
Henco Reducing coupling 26x20
83.5x32.5x32.5
05414764018549
Specifications
Specifications 16PK-2620
- Max. operating pressure 16 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 26 mm
- Contour code connection 1 TH
- Length of connection 1 42 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 20 mm
- Contour code connection 2 TH
- Length of connection 2 42 mm
- Working length connection 2 15 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.68
- With drain valve No
- NetWeight 0.0536
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 16
-
16PK-3216
Henco Reducing coupling 32x16
106x38.5x38.5
05414764018587
Specifications
Specifications 16PK-3216
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 32 mm
- Contour code connection 1 BE
- Length of connection 1 53 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 16 mm
- Contour code connection 2 TH
- Length of connection 2 53 mm
- Working length connection 2 26 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.81
- With drain valve No
- NetWeight 0.0721
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
16PK-3220
Henco Reducing coupling 32x20
102.5x38.5x38.5
05414764018624
Specifications
Specifications 16PK-3220
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 32 mm
- Contour code connection 1 BE
- Length of connection 1 51.5 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 20 mm
- Contour code connection 2 TH
- Length of connection 2 51.5 mm
- Working length connection 2 24.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.69
- With drain valve No
- NetWeight 0.0758
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
16PK-3226
Henco Reducing coupling 32x26
102x38.5x38.5
05414764018662
Specifications
Specifications 16PK-3226
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 32 mm
- Contour code connection 1 BE
- Length of connection 1 51 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 26 mm
- Contour code connection 2 TH
- Length of connection 2 51 mm
- Working length connection 2 24 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.6
- With drain valve No
- NetWeight 0.0898
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
16PK-4026
Henco Reducing coupling 40x26
113.5x46.5x46.5
05414764018709
Specifications
Specifications 16PK-4026
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 40 mm
- Contour code connection 1 BE
- Length of connection 1 57 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 26 mm
- Contour code connection 2 TH
- Length of connection 2 57 mm
- Working length connection 2 30 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.62
- With drain valve No
- NetWeight 0.1182
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
16PK-4032
Henco Reducing coupling 40x32
114.5x46.5x46.5
05414764018747
Specifications
Specifications 16PK-4032
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 40 mm
- Contour code connection 1 BE
- Length of connection 1 57.5 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 32 mm
- Contour code connection 2 BE
- Length of connection 2 57.5 mm
- Working length connection 2 21.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.6
- With drain valve No
- NetWeight 0.1305
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
16PK-5032
Henco Reducing coupling 50x32
146x56.5x56.5
05414764018785
Specifications
Specifications 16PK-5032
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 50 mm
- Contour code connection 1 BE
- Length of connection 1 73 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 32 mm
- Contour code connection 2 BE
- Length of connection 2 73 mm
- Working length connection 2 37 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.67
- With drain valve No
- NetWeight 0.2002
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
16PK-5040
Henco Reducing coupling 50x40
136.5x56.5x56.5
05414764018815
Specifications
Specifications 16PK-5040
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 50 mm
- Contour code connection 1 BE
- Length of connection 1 69 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 40 mm
- Contour code connection 2 BE
- Length of connection 2 69 mm
- Working length connection 2 33 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.59
- With drain valve No
- NetWeight 0.2143
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
16PK-6340
Henco Reducing coupling 63x40
173x69.5x69.5
05414764018846
Specifications
Specifications 16PK-6340
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 63 mm
- Contour code connection 1 BE
- Length of connection 1 86.5 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 40 mm
- Contour code connection 2 BE
- Length of connection 2 86.5 mm
- Working length connection 2 50.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.66
- With drain valve No
- NetWeight 0.337
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
16PK-6350
Henco Reducing coupling 63x50
172x69.5x69.5
05414764018884
Specifications
Specifications 16PK-6350
- Max. operating pressure 10 bar
- Material connection 1 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 1 63 mm
- Contour code connection 1 BE
- Length of connection 1 86 mm
- Material connection 2 Polyvinylidene fluoride (PVDF)
- Outer pipe diameter connection 2 50 mm
- Contour code connection 2 BE
- Length of connection 2 86 mm
- Working length connection 2 35 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- Zeta value 0.53
- With drain valve No
- NetWeight 0.3792
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
