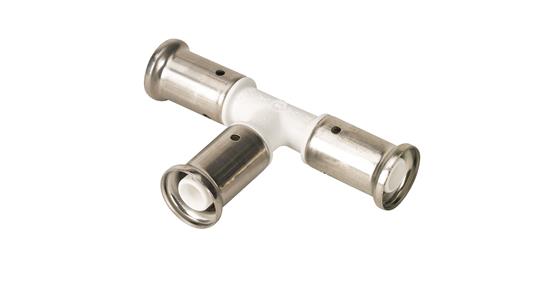

T-piece

T-piece

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Drikkevand
Varme
Trykluft
Køl
Demi Vand

Solutions

Bygningsinstallationer
Industri

Assortiment

Articlenumber Product description LxBxH GTIN
9PKW-161616 T-stk 16x16x16 hvid 94x58x22 05414764217621

Specifications 9PKW-161616

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 47 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 47 mm
Working length connection 2 20 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0476
MaximumOperatingPressureLiquid 16
9PKW-202020 T-stk 20x20x20 hvid 98x62x26 05414764217409

Specifications 9PKW-202020

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 49 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 49 mm
Working length connection 2 22 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0625
MaximumOperatingPressureLiquid 16
9PKW-262626 T-stk 26x26x26 hvid 107x69.5x32.5 05414764218147

Specifications 9PKW-262626

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 53.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 53.5 mm
Working length connection 2 26.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1094
MaximumOperatingPressureLiquid 16
9PKW-323232 T-stk 32x32x32 hvid 139x89x38.5 05414764218345

Specifications 9PKW-323232

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 69.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 32 mm
Contour code connection 2 BE
Length of connection 2 69.5 mm
Working length connection 2 33.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.172
MaximumOperatingPressureLiquid 10
