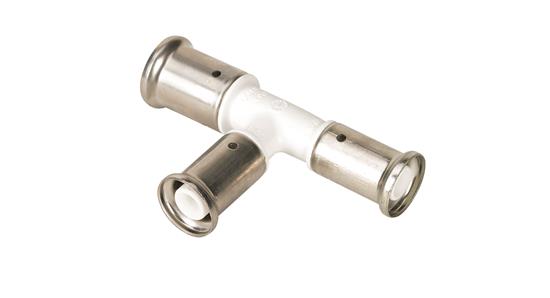

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Drikkevand
Varme
Trykluft
Køl
Demi Vand

Solutions

Bygningsinstallationer
Industri

Assortiment

Articlenumber Product description LxBxH GTIN
11PKW-261620 T-centre and line reduced 26x16x20 hvid 103x69x32.5 05414764254138

Specifications 11PKW-261620

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 51.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0755
MaximumOperatingPressureLiquid 16
11PKW-201616 T-centre and line reduced 20x16x16 hvid 96.5x62x26 05414764217546

Specifications 11PKW-201616

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 47.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 49 mm
Working length connection 2 22 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0537
MaximumOperatingPressureLiquid 16
11PKW-202016 T-centre and line reduced 20x20x16 hvid 100x62x26 05414764217584

Specifications 11PKW-202016

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 49 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 49 mm
Working length connection 2 22 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.059
MaximumOperatingPressureLiquid 16
11PKW-262016 T-centre and line reduced 26x20x16 hvid 103x69x32.5 05414764254220

Specifications 11PKW-262016

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 51.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0743
MaximumOperatingPressureLiquid 16
11PKW-262020 T-centre and line reduced 26x20x20 hvid 102.5x69x32.5 05414764217867

Specifications 11PKW-262020

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 51.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0791
MaximumOperatingPressureLiquid 16
11PKW-262616 T-centre and line reduced 26x26x16 hvid 109x69.5x32.5 05414764255715

Specifications 11PKW-262616

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0897
MaximumOperatingPressureLiquid 16
11PKW-262620 T-centre and line reduced 26x26x20 hvid 107.5x69x32.5 05414764255753

Specifications 11PKW-262620

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 53.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 53 mm
Working length connection 2 26 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0956
MaximumOperatingPressureLiquid 16
11PKW-322026 T-centre and line reduced 32x20x26 hvid 126x75.5x38.5 05414764218505

Specifications 11PKW-322026

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 66.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 56.5 mm
Working length connection 2 29.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1212
MaximumOperatingPressureLiquid 10
11PKW-322626 T-centre and line reduced 32x26x26 hvid 126x75.5x38.5 05414764218383

Specifications 11PKW-322626

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 66.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 56.5 mm
Working length connection 2 29.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1353
MaximumOperatingPressureLiquid 10
11PKW-261616 T-reduceret center och ende 26x16x16 hvid 103x68.5x32.5 05414764328303

Specifications 11PKW-261616

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 52 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 16 mm
Contour code connection 2 TH
Length of connection 2 52 mm
Working length connection 2 25 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0701
MaximumOperatingPressureLiquid 16
