Elbow 90° male adapter

Elbow 90° male adapter

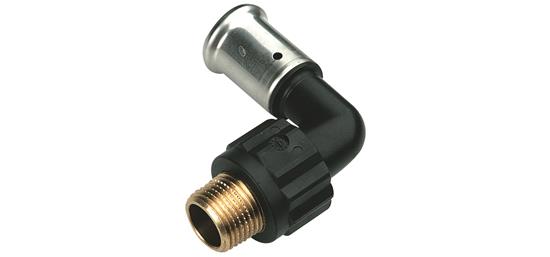

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Drikkevand
Varme
Trykluft
Køl

Solutions

Bygningsinstallationer
Industri

Assortiment

Articlenumber Product description LxBxH GTIN
5PK-1404 Bøjning 90° nippel overgang 14x1/2 70.5x63.5x33 05414764037748

Specifications 5PK-1404

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 14 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 53.5 mm
Working length connection 2 14 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 3.07
With drain No
NetWeight 0.0944
MaximumOperatingPressureLiquid 16
5PK-1604 Bøjning 90° nippel overgang 16x1/2 70.5x65x33 05414764037786

Specifications 5PK-1604

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 53.5 mm
Working length connection 2 14 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 2.02
With drain No
NetWeight 0.0972
MaximumOperatingPressureLiquid 16
5PK-1804 Bøjning 90° nippel overgang 18x1/2 71x67x33 05414764037823

Specifications 5PK-1804

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 18 mm
Contour code connection 1 TH
Length of connection 1 54.5 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 55 mm
Working length connection 2 14 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 2.84
With drain No
NetWeight 0.1008
MaximumOperatingPressureLiquid 16
5PK-2004 Bøjning 90° nippel overgang 20x1/2 70.5x70x33 05414764037861

Specifications 5PK-2004

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 54 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 57 mm
Working length connection 2 14 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 1.87
With drain No
NetWeight 0.1051
DimensionUnitCode MTR
MaximumOperatingPressureLiquid 16
5PK-2005 Bøjning 90° nippel overgang 20x3/4 78.5x71.5x40 05414764037908

Specifications 5PK-2005

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 59 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 58.5 mm
Working length connection 2 16 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 1.87
With drain No
NetWeight 0.1451
MaximumOperatingPressureLiquid 16
5PK-2605 Bøjning 90° nippel overgang 26x3/4 79x78.5x40 05414764037946

Specifications 5PK-2605

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 59 mm
Material connection 2 Brass
Contour code connection 2 TH
Length of connection 2 62.5 mm
Working length connection 2 16 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 1.97
With drain No
NetWeight 0.1625
MaximumOperatingPressureLiquid 16
5PK-3206 Bøjning 90° nippel overgang 32x1 96x87x45.5 05414764037991

Specifications 5PK-3206

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 32 mm
Contour code connection 1 BE
Length of connection 1 73.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 68 mm
Working length connection 2 18 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 1.98
With drain No
NetWeight 0.2334
MaximumOperatingPressureLiquid 10
5PK-4007 Bøjning 90° nippel overgang 40x5/4 109x101x57 05414764038035

Specifications 5PK-4007

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 40 mm
Contour code connection 1 BE
Length of connection 1 80.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 78 mm
Working length connection 2 59 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 1.87
With drain No
NetWeight 0.359
MaximumOperatingPressureLiquid 10
5PK-5007 Bøjning 90° nippel overgang 50x5/4 129x114x57 05414764038073

Specifications 5PK-5007

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 100.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 85.5 mm
Working length connection 2 66.5 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 1.75
With drain No
NetWeight 0.4456
MaximumOperatingPressureLiquid 10
5PK-5008 Bøjning 90° nippel overgang 50x6/4 135x121.5x68.5 05414764038110

Specifications 5PK-5008

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 50 mm
Contour code connection 1 BE
Length of connection 1 100.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 93 mm
Working length connection 2 72.5 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 1.75
With drain No
NetWeight 0.5564
MaximumOperatingPressureLiquid 10
5PK-6310 Bøjning 90° nippel overgang 63x2 171.5x152.5x90 05414764038158

Specifications 5PK-6310

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 63 mm
Contour code connection 1 BE
Length of connection 1 126.5 mm
Material connection 2 Brass
Contour code connection 2 BE
Length of connection 2 117.5 mm
Working length connection 2 94 mm
Facon Bend
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Zeta value 1.67
With drain No
NetWeight 1.098
MaximumOperatingPressureLiquid 10
