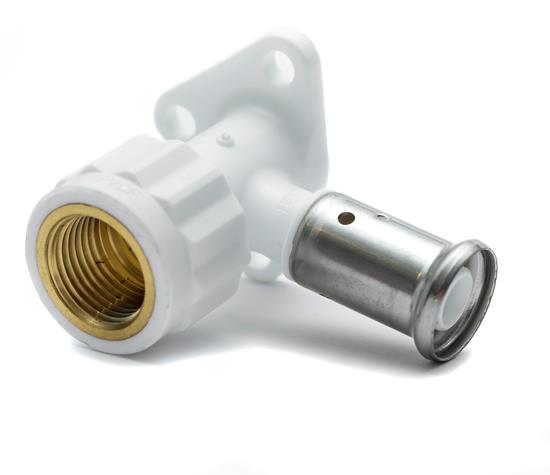

Backplate elbow female

Backplate elbow female

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Potable water
Heating
cooling
compressed air

Solutions

Building Installations
Industry

Assortiment

Articlenumber Product description LxBxH GTIN
2PKW-2005 Henco Backplate elbow female White 20x3/4" 89x62x61 05414764277588

Specifications 2PKW-2005

Max. operating pressure 16 bar
Outer pipe diameter connection 1 20 mm
Length of connection 1 58 mm
Length of connection 2 42 mm
Working length connection 2 26.5 mm
Shape Right-angled
Min. medium temperature (continuous) -10 °C
NetWeight 0.1195
MaximumOperatingPressureLiquid 16
2PKW-2605 Henco Backplate elbow female White 26x3/4" 89x62x660 05414764277816

Specifications 2PKW-2605

Max. operating pressure 16 bar
Outer pipe diameter connection 1 26 mm
Length of connection 1 58 mm
Length of connection 2 43 mm
Working length connection 2 27.5 mm
Shape Right-angled
Min. medium temperature (continuous) -10 °C
NetWeight 0.1352
MaximumOperatingPressureLiquid 16
2PKW-1604 Henco Backplate elbow female White 16x1/2" 78x52x56 05414764339538

Specifications 2PKW-1604

Max. operating pressure 16 bar
Outer pipe diameter connection 1 16 mm
Length of connection 1 52 mm
Length of connection 2 37 mm
Working length connection 2 23 mm
Shape Right-angled
Min. medium temperature (continuous) -10 °C
NetWeight 0.0871
MaximumOperatingPressureLiquid 16
2PKW-1604-N Henco Backplate elbow female White 16x1/2" CW602 78x52x56 05414764339491

Specifications 2PKW-1604-N

Max. operating pressure 16 bar
Outer pipe diameter connection 1 16 mm
Length of connection 1 52 mm
Length of connection 2 37 mm
Working length connection 2 23 mm
Shape Right-angled
Min. medium temperature (continuous) -10 °C
NetWeight 0.0871
MaximumOperatingPressureLiquid 16
2PKW-2004 Henco Backplate elbow female White 20x1/2" 78x52x56 05414764339644

Specifications 2PKW-2004

Max. operating pressure 16 bar
Outer pipe diameter connection 1 20 mm
Length of connection 1 52 mm
Length of connection 2 37 mm
Working length connection 2 23 mm
Shape Right-angled
Min. medium temperature (continuous) -10 °C
NetWeight 0.0904
MaximumOperatingPressureLiquid 16
2PKW-2004-N Henco Backplate elbow female White 20x1/2" CW602 78x52x56 05414764339651

Specifications 2PKW-2004-N

Max. operating pressure 16 bar
Outer pipe diameter connection 1 20 mm
Length of connection 1 52 mm
Length of connection 2 37 mm
Working length connection 2 23 mm
Shape Right-angled
Min. medium temperature (continuous) -10 °C
NetWeight 0.0904
MaximumOperatingPressureLiquid 16
2PKW-2005-N Henco Backplate elbow female White 20x3/4" CW602 89x62x61 05414764318724

Specifications 2PKW-2005-N

Max. operating pressure 16 bar
Outer pipe diameter connection 1 20 mm
Length of connection 1 58 mm
Length of connection 2 42 mm
Working length connection 2 26.5 mm
Shape Right-angled
Min. medium temperature (continuous) -10 °C
NetWeight 0.1195
MaximumOperatingPressureLiquid 16
2PKW-2605-N Henco Backplate elbow female White 26x3/4" CW602 89x62x660 05414764318687

Specifications 2PKW-2605-N

Max. operating pressure 16 bar
Outer pipe diameter connection 1 26 mm
Length of connection 1 58 mm
Length of connection 2 43 mm
Working length connection 2 27.5 mm
Shape Right-angled
Min. medium temperature (continuous) -10 °C
NetWeight 0.1352
MaximumOperatingPressureLiquid 16
