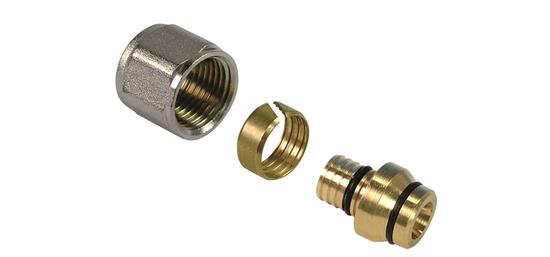

Nut, insert and jointing ring to copper compression
The body of the Henco fittings is made from brass CuZn40Pb2 (CW617N).
The fittings are provided with O-rings and a union nut. The compression fittings have a synthetic buffer ring to prevent electrolysis between the brass and the aluminium.
Henco screw/compression fittings can be used for all applications with a maximum working pressure up to 10 bar, except for pipes which are built in floors or walls.
The body of the Henco screw/compression fittings is manufactured from brass. The fittings are provided with O-rings and a union nut with a clamping ring. Just like the brass press fittings they are fitted with a synthetic buffer ring to prevent electrolysis between the brass and the aluminium.
As in the compression and press fittings range, there are a number of fittings available which allow you to connect copper or steel pipes to Henco pipes.
Applications
Solutions
Product range
- Article number Product description LxBxH GTIN
-
13-1415-2
Nut for eurocone,ins. and jointing ring to copper compress 14x15
25x26x26
05414764380080
Specifications
Specifications 13-1415-2
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 14 mm
- Length of connection 1 12.7 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 15 mm
- Length of connection 2 12.5 mm
- Working length connection 2 12.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.0543
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
13-1615A-2
Nut for eurocone,ins. and jointing ring to copper compress 16x15
25x26x26
05414764380004
Specifications
Specifications 13-1615A-2
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 16 mm
- Length of connection 1 12.7 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 15 mm
- Length of connection 2 12.5 mm
- Working length connection 2 12.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.051
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
13-1615HA-2
Nut for eurocone,ins. and jointing ring to copper compress 16x15 (yell brass)
25x26x26
05414764379961
Specifications
Specifications 13-1615HA-2
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 16 mm
- Length of connection 1 12.7 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 15 mm
- Length of connection 2 12.5 mm
- Working length connection 2 12.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.051
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
13-2022HA-2
Nut for eurocone,ins. and jointing ring to copper compress 20x22
25x34x34
05414764379923
Specifications
Specifications 13-2022HA-2
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 20 mm
- Length of connection 1 12.7 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 22 mm
- Length of connection 2 12.5 mm
- Working length connection 2 12.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.088
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
-
13-2628H-2
Nut for eurocone,ins. and jointing ring to copper compress 26x28
30x43x43
05414764380042
Specifications
Specifications 13-2628H-2
- Max. operating pressure 10 bar
- Material connection 1 Brass
- Outer pipe diameter connection 1 26 mm
- Length of connection 1 12.7 mm
- Material connection 2 Brass
- Outer pipe diameter connection 2 28 mm
- Length of connection 2 12.5 mm
- Working length connection 2 12.5 mm
- Shape Straight
- Material sealing Ethylene-propylene diene monomer rubber (EPDM)
- With drain valve No
- NetWeight 0.1509
- DimensionUnitCode MMT
- MaximumOperatingPressureLiquid 10
