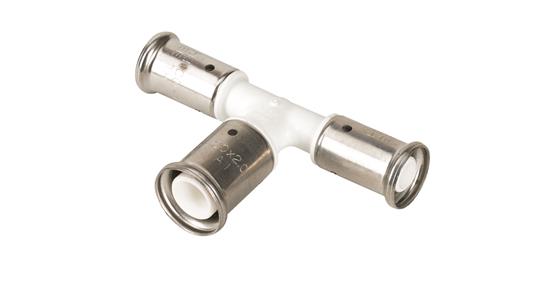

T-enlarged branch

T-enlarged branch

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Drikkevand
Varme
Trykluft
Køl
Demi Vand

Solutions

Bygningsinstallationer
Industri

Assortiment

Articlenumber Product description LxBxH GTIN
12PKW-162016 T-stk centre 16x20x16 hvid 100x59x26 05414764254954

Specifications 12PKW-162016

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 16 mm
Contour code connection 1 TH
Length of connection 1 50 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 20 mm
Contour code connection 2 TH
Length of connection 2 48 mm
Working length connection 2 21 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0534
MaximumOperatingPressureLiquid 16
12PKW-202620 T-stk centre 20x26x20 hvid 106.5x64.5x32.5 05414764254992

Specifications 12PKW-202620

Max. operating pressure at 20 °C 16 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 20 mm
Contour code connection 1 TH
Length of connection 1 53.5 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 26 mm
Contour code connection 2 TH
Length of connection 2 51.5 mm
Working length connection 2 24.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.0798
MaximumOperatingPressureLiquid 16
12PKW-263226 T-forstørret centre 26x32x26 hvid 114x81.5x38.5 05414764333765

Specifications 12PKW-263226

Max. operating pressure at 20 °C 10 bar
Material connection 1 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 1 26 mm
Contour code connection 1 TH
Length of connection 1 57 mm
Material connection 2 Polyvinylidene fluoride (PVDF)
Outer pipe diameter connection 2 32 mm
Contour code connection 2 BE
Length of connection 2 65.5 mm
Working length connection 2 29.5 mm
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With drain No
NetWeight 0.1308
MaximumOperatingPressureLiquid 10
