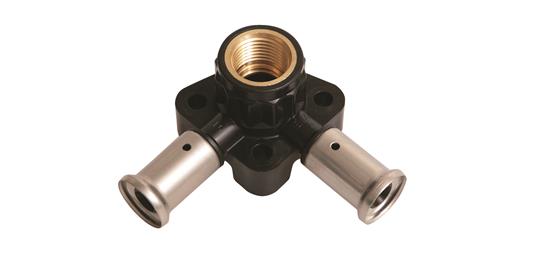

Double backplate elbow female, short model

Double backplate elbow female, short model

PVDF press fittings in combination with multilayer pipe, a completely corrosion-free system. The synthetic press fittings are made from injection moulded PVDF (Polyvinylidene fluoride)*. PVDF offers the user a unique combination of properties:

  • Highly resistant to pressure and temperature
  • Excellent mechanical strength
  • Extreme flexibility: bending up to 10° is possible
  • Perfectly suited for drinking water and food
  • Highly resistant to chemicals and corrosion
  • Embedding is possible without extra protection

Applications

Drikkevand
Varme
Trykluft
Køl

Solutions

Bygningsinstallationer
Industri

Assortiment

Articlenumber Product description LxBxH GTIN
3PK-160416BP Dobbel dækvinkel bøjning muffe,kort model 16x1/2 x16 83.5x83.5x43.5 05414764058798

Specifications 3PK-160416BP

Max. operating pressure at 20 °C 16 bar
Length of connection 1 60 mm
Length of connection 2 42 mm
Working length connection 2 28 mm
Facon Right-angled
Zeta value 4.16
NetWeight 0.1087
MaximumOperatingPressureLiquid 16
3PK-200420BP Dobbel dækvinkel bøjning muffe,kort model 20x1/2 x20 83.5x83.5x43.5 05414764058873

Specifications 3PK-200420BP

Max. operating pressure at 20 °C 16 bar
Length of connection 1 60 mm
Length of connection 2 44 mm
Working length connection 2 30 mm
Facon Right-angled
Zeta value 4.32
NetWeight 0.1189
MaximumOperatingPressureLiquid 16
